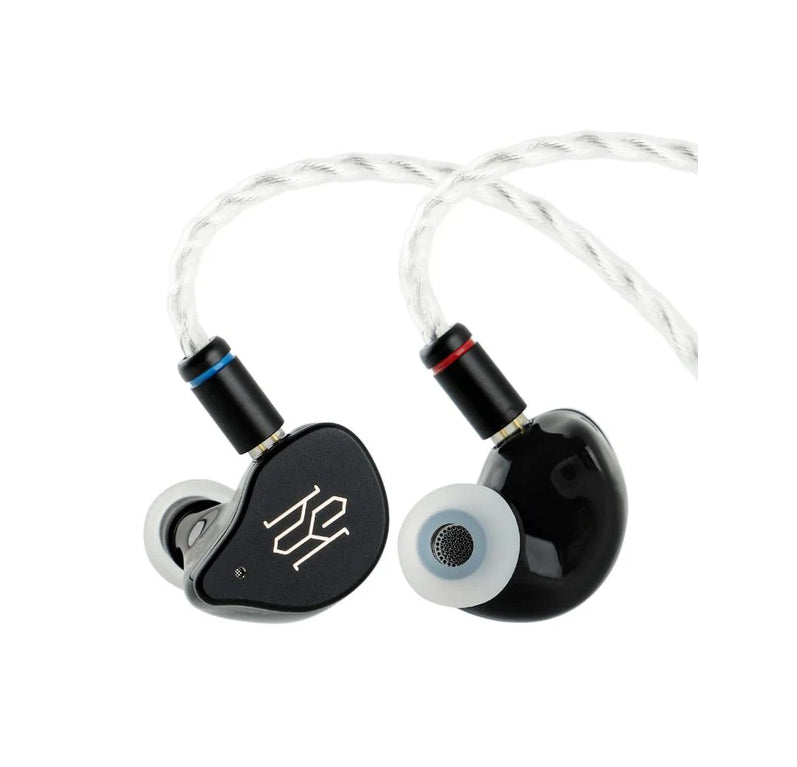

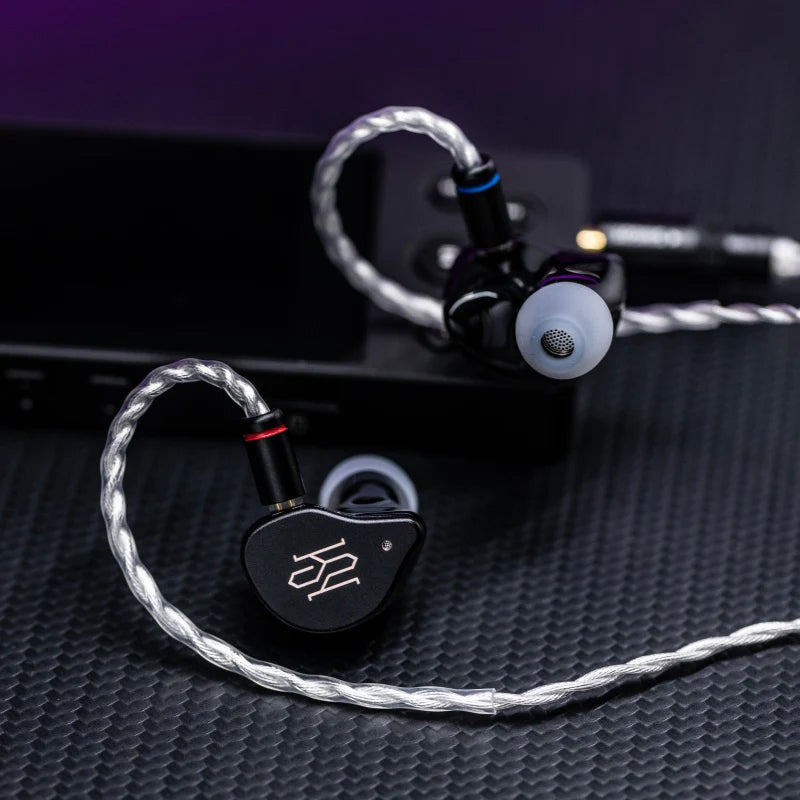

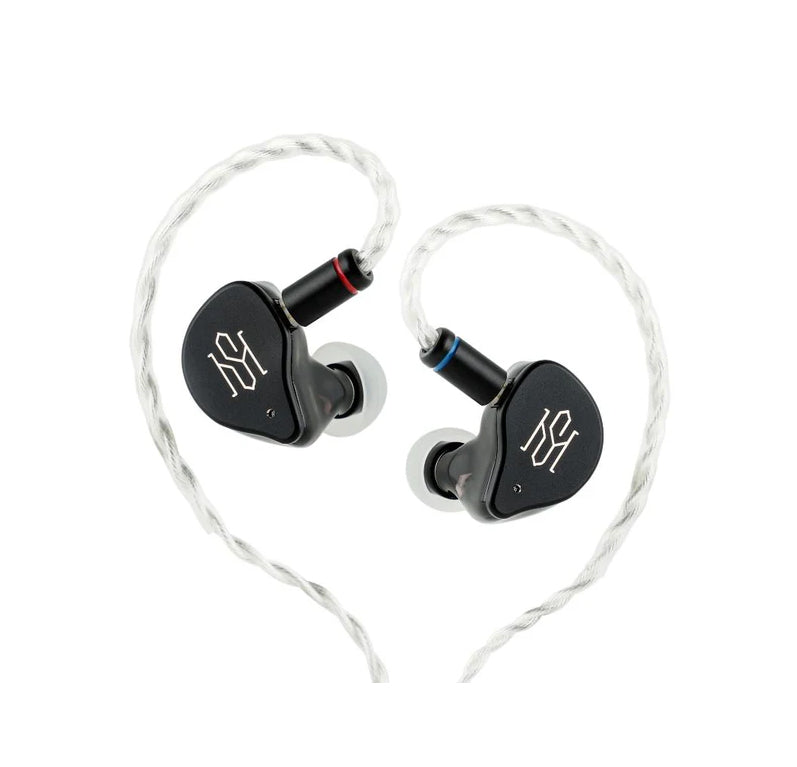

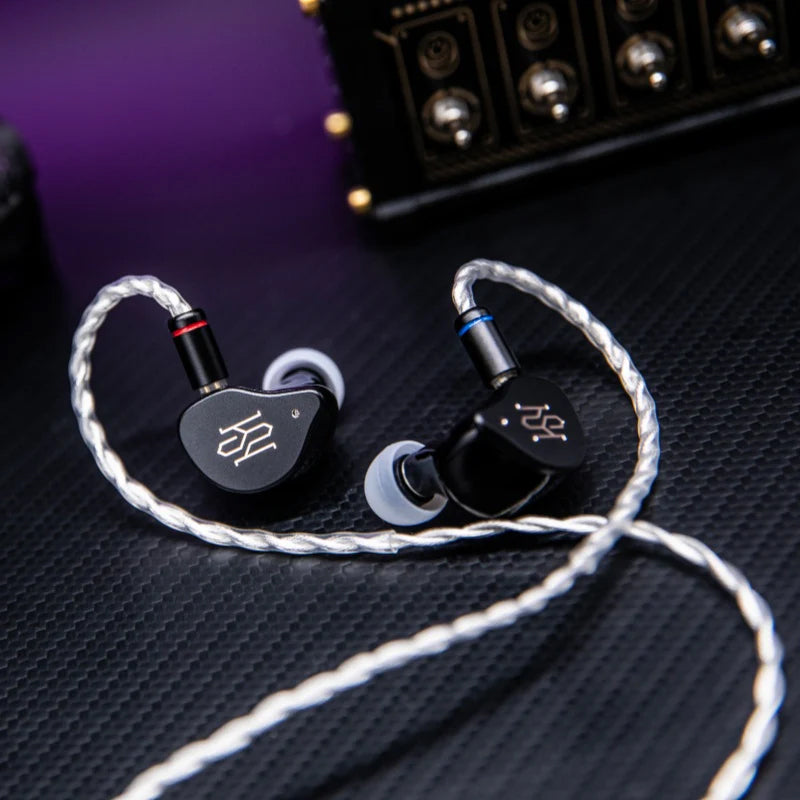

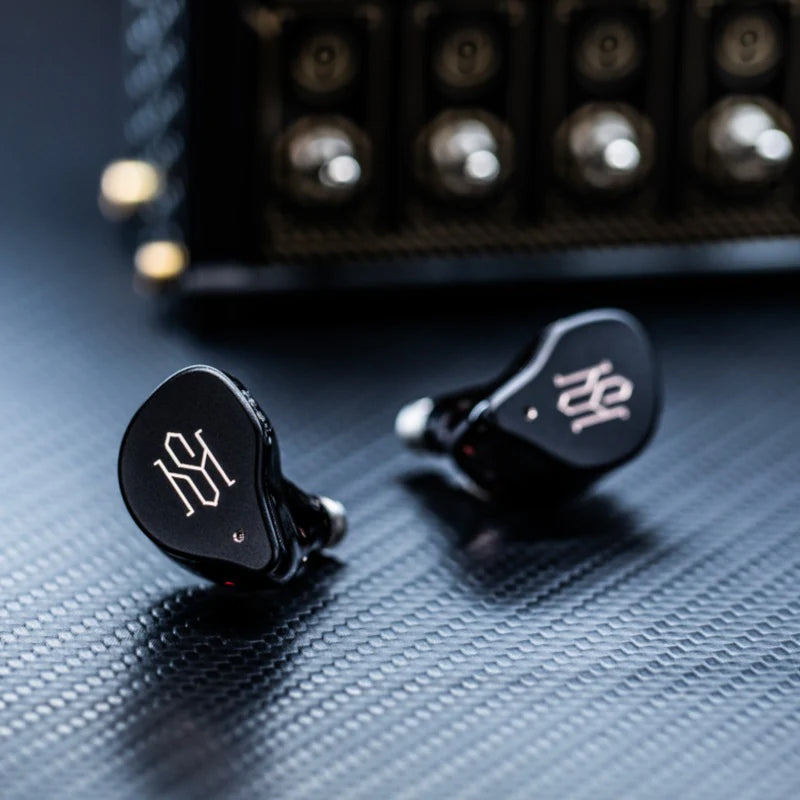

SIMGOT SuperMix 5 1BC+1DD+2BA+1MP in Ear Monitor
SIMGOT SuperMix 5 combines a five-driver hybrid system with custom bone conduction, precise four-way tuning, and ergonomic 3D-printed design to deliver powerful bass, high resolution, and a natural soundstage. Paired with a silver-plated Litz cable and interchangeable plugs, it excels in music and gaming.
Five-in-one Matrix Acoustic Architecture
SuperMix 5 employs a luxurious five-driver configuration of ‘dynamic driver x 1 + balanced armature x 2 + micro planar driver x 1 + bone conduction x 1’. This includes an 8mm DLC flexible surround dynamic driver, delivering robust and detailed bass. Paired with two large-volume balanced armature drivers for the midrange and a planar magnetic driver, it significantly enhances resolution and extension. A custom 10mm bone conduction driver, designed for mid-to-low frequency compensation, enhances bass texture and response speed. The synergistic operation of these multiple drivers achieves a natural tonal fusion.
Custom Coil Bone Conduction Technology
SuperMix 5 incorporates a custom coil bone conduction driver. This converts electrical audio signals into mechanical vibrations, which are transmitted directly to the inner ear via bony structures such as the skull. Compared to conventional “air conduction”, bone conduction bypasses the air-transmission pathway through the outer and middle ear, stimulating the inner ear directly via skeletal vibration. Its effective frequency response spans 200Hz–7kHz, significantly enhancing low-frequency texture, response speed, and subtle dynamic detail.
Scientific Tuning and Independent Acoustics
Through precision-engineered RC four-way crossover circuits, frequency ranges are rationally allocated across distinct drivers to maximise their individual characteristics. Employing resin 3D printing technology, each driver is fitted with an independent filter duct designed to prevent interference. Combined with a multi-channel damping tuning system, this enables precise control over frequency response and phase alignment across all drivers, achieving seamless transitions, low distortion, and a natural, authentic soundstage.

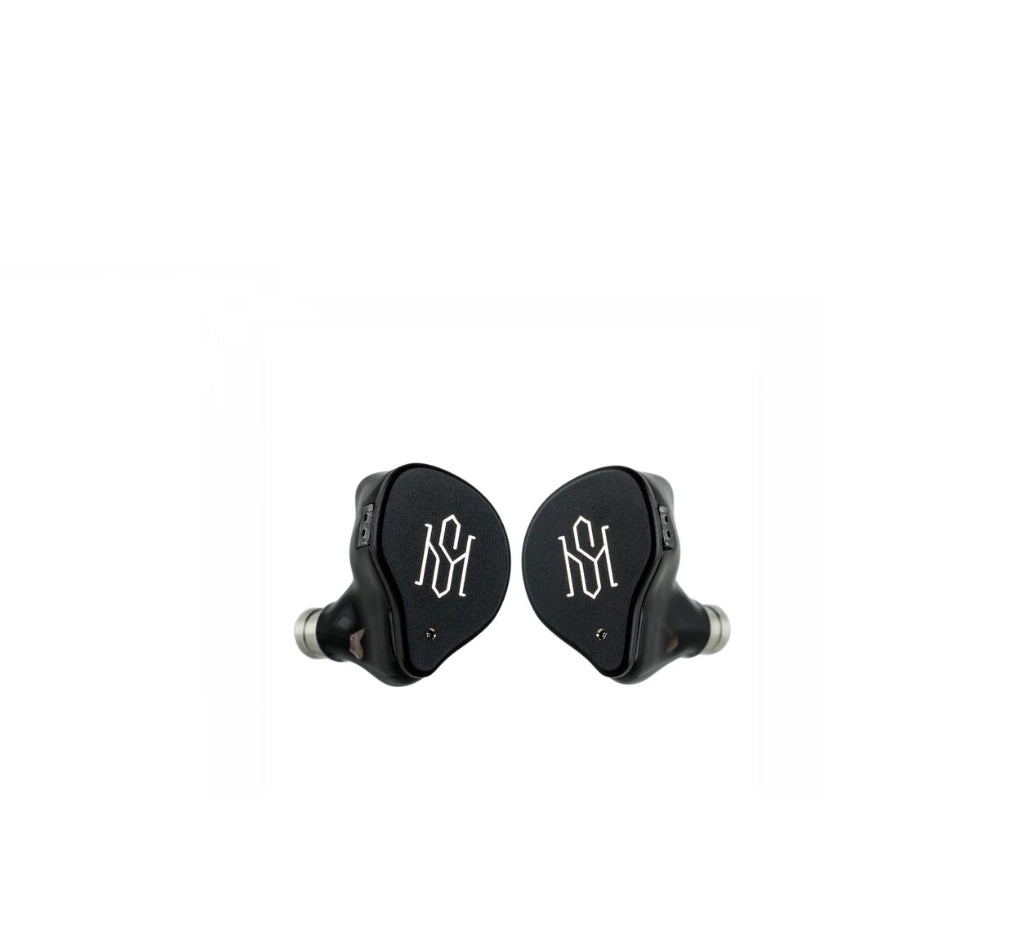

Precision Craftsmanship and Scientific Design
Employing high-precision resin 3D printing and CNC machining of metal, the design achieves a seamless fusion of a translucent black resin housing with a satin-finished metal cover. The construction fully accounts for the physical properties of resin and metal, incorporating acoustic principles to effectively suppress standing waves, resulting in a more refined and pure sound signature. SuperMix 5's housing design integrates extensive 3D data from diverse ear shapes, delivering an ergonomic solution that ensures a secure and comfortable wearing experience.

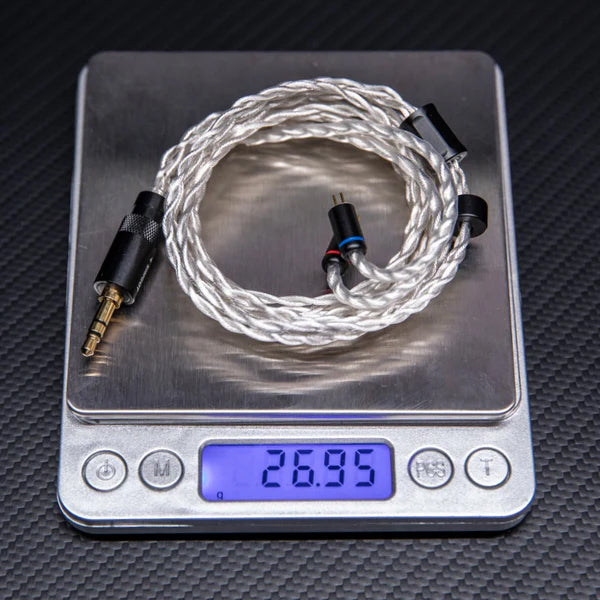

High-purity OCC Silver-plated Litz Cable
Features Litz-structured single-crystal silver-plated copper conductors to ensure high-fidelity signal transmission, enhancing sound separation and transparency. Supports 0.78mm 2-pin detachable cable with interchangeable 3.5mm/4.4mm plugs. Referencing the H-2019 frequency response curve, the SuperMix 5 excels in both audio-visual and gaming applications, delivering precise sound reproduction. Its robust bass and clear detail satisfy demands for entertainment and competitive gaming.
Technical Details
Model: Simgot SuperMix 5
Driver Configuration: 1× Bone Conduction + 1× Dynamic Driver + 2× Balanced Armature + 1× Micro Planar Driver
Dynamic Driver: DLC Flexible Surround Low-Frequency Driver
Impedance: 19Ω ±15% (@1kHz)
Sensitivity: 120dB/Vrms (@1kHz)
Frequency Response: 8Hz–40kHz
Effective Frequency Response: 20Hz–20kHz
Connector: 0.78mm 2-Pin
Housing: High-Precision Resin 3D Printing
Cable Material: Litz High-Purity Silver-Plated Single-Crystal Copper
Plug Type: 3.5mm / 4.4mm Interchangeable Plugs

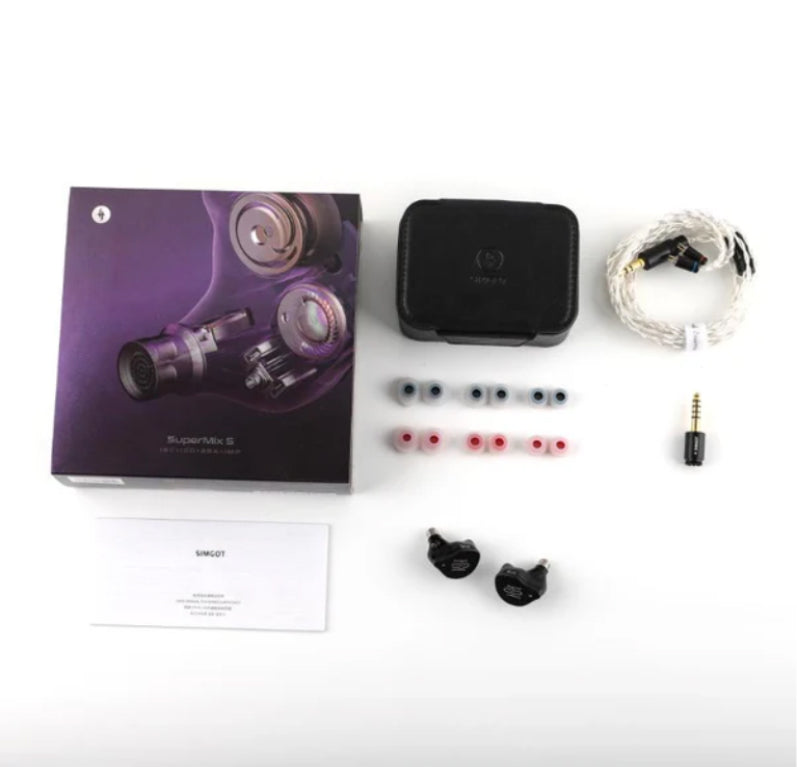

Inside the Box
1x Pair of SIMGOT SuperMix 5 In-Ear Monitors
1x Detachable Premium Cable
1x Carrying Case
6x Eartips
1x 3.5mm Adapter
1x 4.4mm Adapter
1x Warranty Card / Thank You Note
