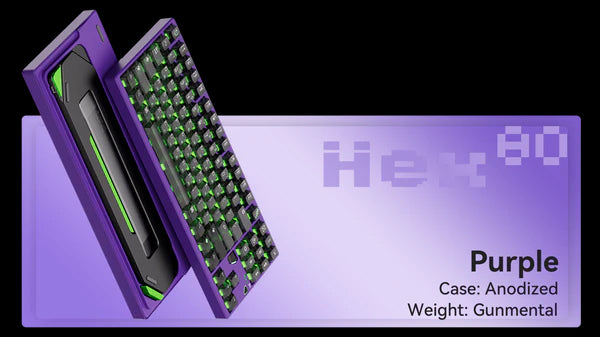

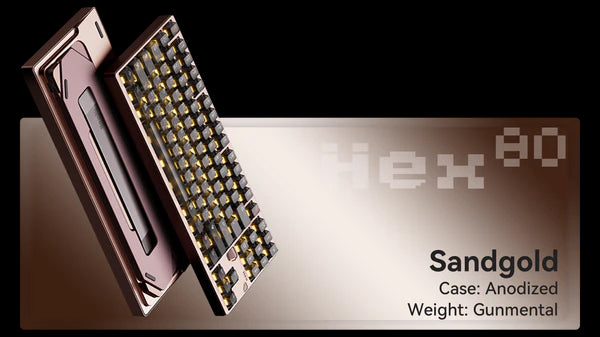

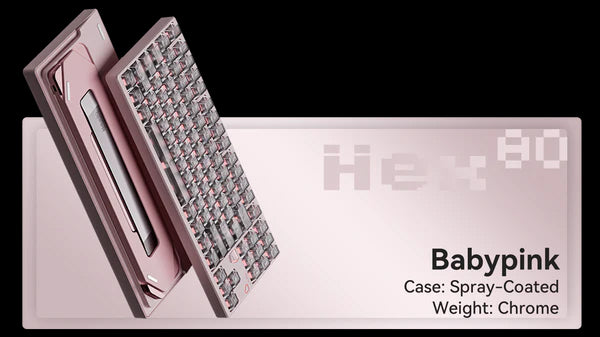

Hex80 Hall Effect Custom Keyboard
QwertyKeys × ATK Hex80 HE Keyboard
Stop imagining the perfect gaming keyboard. Experience it.
The Hex80 isn't just another custom keyboard; it's a revolution powered by cutting-edge Hall Effect magnetic switch technology and crafted with uncompromising premium quality. When the ultimate performance in gaming no longer requires sacrificing the keyboard's most essential typing experience, we believe this is how a great gaming keyboard should be.
Acoustic
Performance
When OwLab's latest Ti HE magnetic switches combine with QK's specially tuned acoustic package, they create a unique synergy. Who says outstanding gaming performance must sacrifice daily typing experience? Hex80 delivers satisfying acoustics just like your premium mechanical keyboard.
OwLab's Ti HE Magnetic Switches
Thock, Precise, Reliable
Type: Linear
Bottom-Out Force: 50±5g
Total Travel: 3.4±0.2mm
Initial Magnetic Flux: 120±20gs
Bottom-Out Magnetic Flux: 750±50gs
Lubrication: Pre-Lubed
Top Housing Material: PC
Stem Material: POM
Bottom Housing Material: PA (Closed-Bottom)
OwLab’s Ti HE magnetic switches are equipped with proprietary PG-3 self-lubricating material, delivering an ultra-smooth and highly stable typing experience.
Acoustic Package
Built from a CF plate, Poron foam, IXPE and PE sheets, along with two layers of case foam, the HEX80’s acoustic package is meticulously crafted to deliver a balanced and refined sound profile. Paired with its gasket-mounted structure, the Hex80 strikes an exceptional balance between typing sound, feel, and performance requirements.
ATK 3rd Generation Blazing Wind Magnetic Switch Solution
Self-Developed STOS Architecture
120% overclocking performance with a next-generation architecture, maximizing hardware potential.
ATK AI-Powered Calibration
Al-driven dynamic calibration with over 10,000 data sets, providing precise analysis for each key with 330+ data points.
AI Performance
With a 480MHz MCU and 15 chips design, where every five to six keys are processed by a dedicated chip, achieving peak keyboard performance
Proven on the Pro Stage
Aspas used the keyboard powered by ATK's Blazing Wind Solution during VCT Americas Stage 1, leading his team to qualify for the Toronto Masters.
Dual-DriverSolution
Featuring the fully self-developed ATK HUB driver accessible through both web browser and desktop client, this solution allows you to change settings without downloading software for daily use. It supports advanced magnetic switch functions including RT, SOCD, DKS, MT, and TGL, along with complete key remapping and music-reactive lighting for enhanced enjoyment.
Specifications
Dimensions:
357×136.5×35 mm (Excluding rubber feet)
Front Height:
18 mm with 7° typing angle (Excluding rubber feet)
PCB:
1.6mm Wired ANSI Hotswap Non-flex cut PCB
Content List
Packaging Contents:
1 × Carrying Case
1 × Hex80 Keyboard （ including switches, keycaps, stabilizers, plates and PCB pre-assembled）
1 × Accessory Kit
1 × User Manual
1 × Compliance Certificate
Complimentary Accessories:
4 × Backup Switches
1 × USB Cable
1 × Keycap & Switch Puller
