QUICK SWITCHING TECHNOLOGY

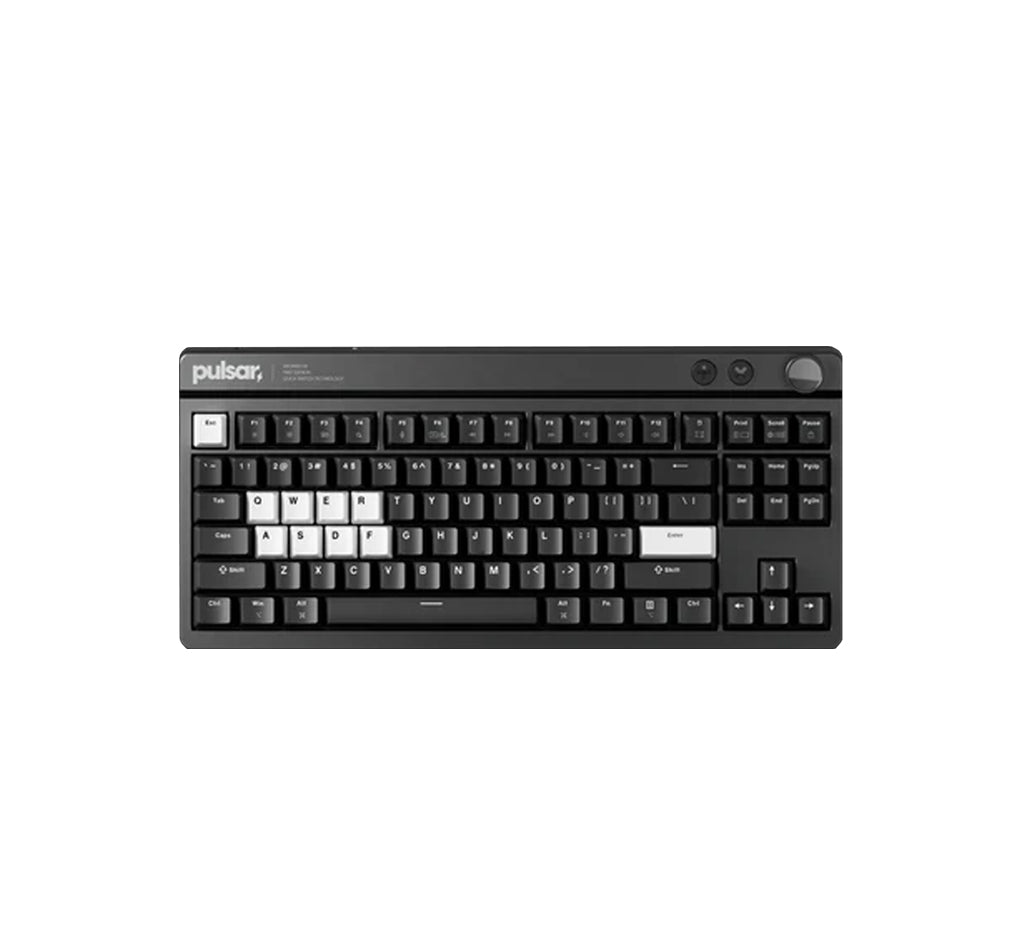

Introducing the BOARD QS Gaming Keyboard, Pulsar's first keyboard edition developed by our research team. Featuring the XBOARD QS's built-in hub, it seamlessly connects mice and external devices. The Quick Switch button enables swift switching between two PCs, eliminating the need for separate keyboards and mice. This highlights Pulsar’s innovative technology. It fully supports Windows and macOS, broadening its usability, and features QMK for customizable keyboard settings. Discover the convenience and functionality of the groundbreaking BOARD QS Gaming Keyboard from Pulsar.
Technical Specifications
DIMENSIONS
Length: 14.1in (360mm)
Width: 6.4in (163mm)
Height: 1.37in (35mm)
Weight: 1480g (± 1g) / 52.2oz
SPECIFICATION
88-key Tenkeyless
Quick Switching Technology - Dedicated button for fast computer switching
Perfect Windows/Mac Compatibility
Precision CNC-machined aluminum body
Gasket Mounting
Volume and LED control knob
Built-in USB-A 2-port hub
Anti-ghosting
44-type RGB lighting effects
PBT Double-shot keycaps
Hot-swappable switches - compatible with most 3-pin / 5-pin MX mechanical switches
South-facing RGB LED
QMK/VIA Support
SPECIAL KEYS
2 Button Keys for fast computer switching
Volume Knob
Win/Mac Switch key
CONNECTIVITY
USB Type-C 2.0 x 2
USB Type-A 2.0 x 2
DC 5V / 500mA
SUPPORT WEB/APP
VIA
REMAP
Signal RGB
Vial
REQUIREMENT
Windows 7 or higher
Mac OS X v10.11 or higher
PACKAGE CONTENTS
Xboard QS Keyboard x 1
USB-C Cable (1.5m) x 2
Switch Puller x 1
Keycap Puller x 1
Extra switch x 5
Dust Bag x 1
User Manual x 1
Brand Sticker x 1
QUICK SWITCHING TECHNOLOGY
Designed for solo broadcasting, multi-gaming setups, and developer environments, this keyboard allows simultaneous connection to two computers using the dual usb-c to a ports. utilize the button for swift switching between the two computers. when transitioning between computers, connect peripherals like a mouse, external hard drive, or other devices to the xboard keyboard, enabling rapid device switching on the newly connected pc without detachment.
INTEGRATED USB HUB
Xboard QS has two built-in USB-A ports, allowing you to connect a mouse and other external devices for use. All connected devices can be switched between PC1 and PC2 using the Quick Switch button. With two buttons, you can swap between two PCs instantly without needing to detach any external devices.
44 PATTERNS RGB
Comes with 44 built-in RGB patterns and allows for RGB function settings and color changes. You can adjust brightness, change patterns, and turn the RGB LED on and off using [FN] + [KNOB].
PERFECT MAC/ WINDOWS COMPATIBILITY
Both Windows and macOS are fully compatible, expanding the range of user environments. You can use the Mac layout without any special key mappings. PC1 and PC2 support quick switching between Windows and macOS without any limitations on the operating system. Additionally, it features dedicated keys for quickly switching between operating systems.
TRIPLE ABSORPTION STRUCTURE GASKET MOUNT
Built with a durable reinforced plate and aluminum body, it features a triple absorption structure to minimize resonance. The silicone gasket mount reduces unnecessary vibrations and noise during typing, providing a more precise and smooth typing experience. Experience comfortable and efficient typing with the latest gasket mount technology.
PBT DOUBLE-SHOT KEYCAP
Double injection keycaps are durable, with legends that never fade and a premium, long-lasting appearance.
TRIPLE ABSORPTION STRUCTURE
The triple absorption structure further reduces resonance, providing a quieter and more stable typing experience.
GASKET MOUNTING
Prevents vibrations and noise, delivering a quiet and smooth typing experience.
Precision CNC Aluminum Design
The Xboard QS features a durable aluminum case housing, precisely CNC-machined and designed to embody Pulsar's unique identity.
KAILH BOX SWITCH
The quiet and responsive KAILH BOX ICE MINT V2 linear switch, preferred by gamers, is used. This switch provides excellent responsiveness, consistent feel, and a smooth, stable typing experience.
Switch Type: Linear
Actuation Force: 38±10gf
Bottom-out Force: 50±10gf
HOT SWAPPABLE
Hotswap support allows you to replace switches easily, enabling you to experience various typing feels and facilitating simple repairs in case of switch malfunction.
It supports MX-style mechanical switches with 3 or 5 pins, including brands like Gateron, Kailh, Cherry, Holly Panda, etc.
**Switch remover included.
QMK / VIA, REMAP, SIGNAL RGB, VIAL
Supporting open-source QMK firmware, it allows you to freely utilize VIA, REMAP, SIGNAL RGB, and VIAL functionalities. This app enables configuring all keys, macros, RGB lighting control, and more directly from the web without the need for separate installation programs.
