OWLAB X WOOTING 60% Keyboard Case

Wooting Owlabs OW60

Renowned custom keyboard maker OwLab created a special case for the Wooting 60HE(+), with a clean, layered aesthetic and bold accents that give it a mechanical feel. There's a switch on the bottom. Flipping it to completely transform the feel of the keyboard.

OwLab x Wooting
OwLab, a top tier brand in the custom keyboard world, is known for its premium craftsmanship and bold designs. Now, they've brought their expertise to the Wooting 60HE(+), creating an aesthetically stunning case with a unique feature that's turned on with the flip of a switch.

Technical Specifications
Dimensions
Inner: 287.5mm x 96.25mm x H | 11.32" x 3.78" x H
Outer: 296.03mm x 116.46mm x H | 11.65" x 4.58" x H

Height
27.65mm (±0.5mm)
1.09" (±0.02")

Case Thickness
30.31mm | 1.19" (back)
19.75mm | 0.78" (front)

Case Weight
794.5g

Case Angle
6 degrees

USB Port Opening
Position: Left, 10.34mm (0.41") x 4.12mm (0.16"), Teflon tape around port to prevent scratches

PCB Compatibility
Wooting 60HE, Wooting 60HE+, and all the other 60% PCB's that have the same mounting points as the 60HE. Note that your ANSI or ISO keyboard layout needs to match the case layout.

Wooting 60HE v2 PCB compatibility
60HE v2 PCB (standard spacebar) is fully compatible with the OW60.
60HE v2 PCB (split spacebar) fits only with the friction fit pad that is included with the 60HE v2 (Module).

Case Material(s)
Case: All aluminium 6063
Strap: Nylon
Attachment: Synthetic leather + Gold plated Chicago Screws
Feet: Silicone
Screws: Steel (black)
Switch plate: Carbon fibre
Sandwich pad: Roger's PORON® foam
Sound dampening: Adhesive PORON® foam from INOAC

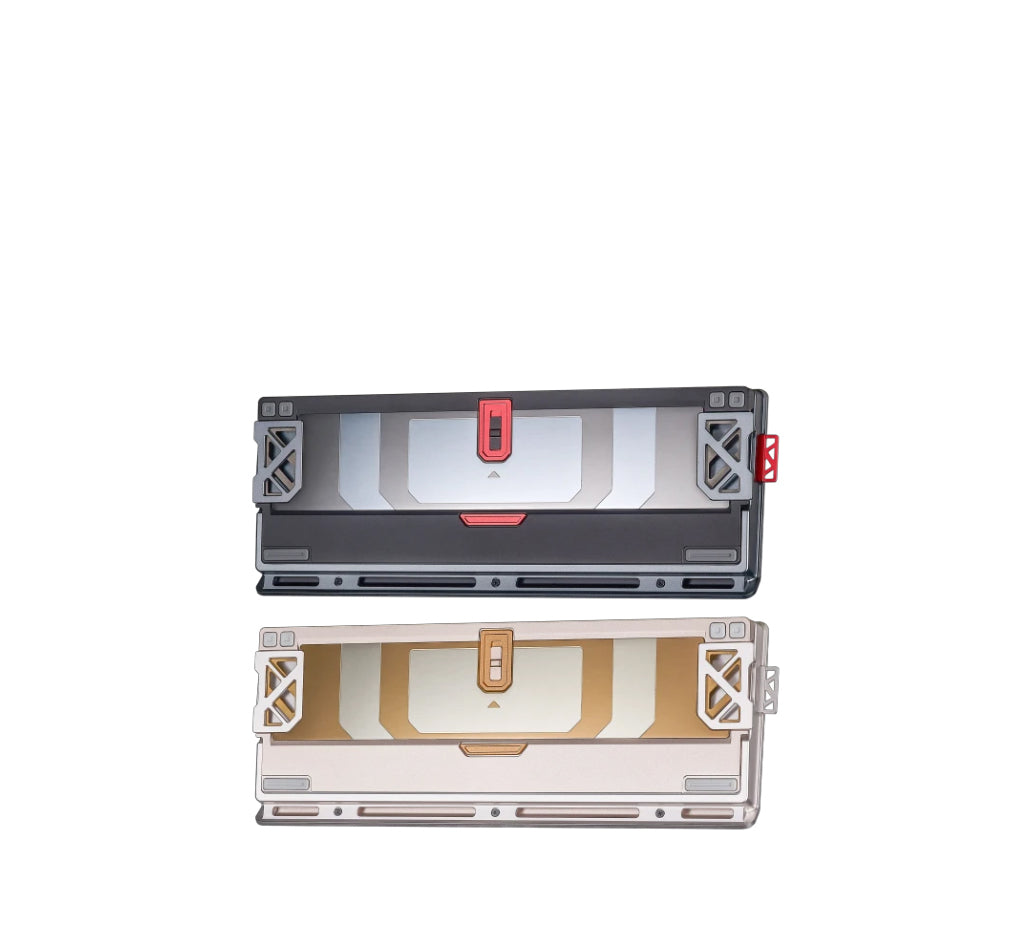

Colour & Finish

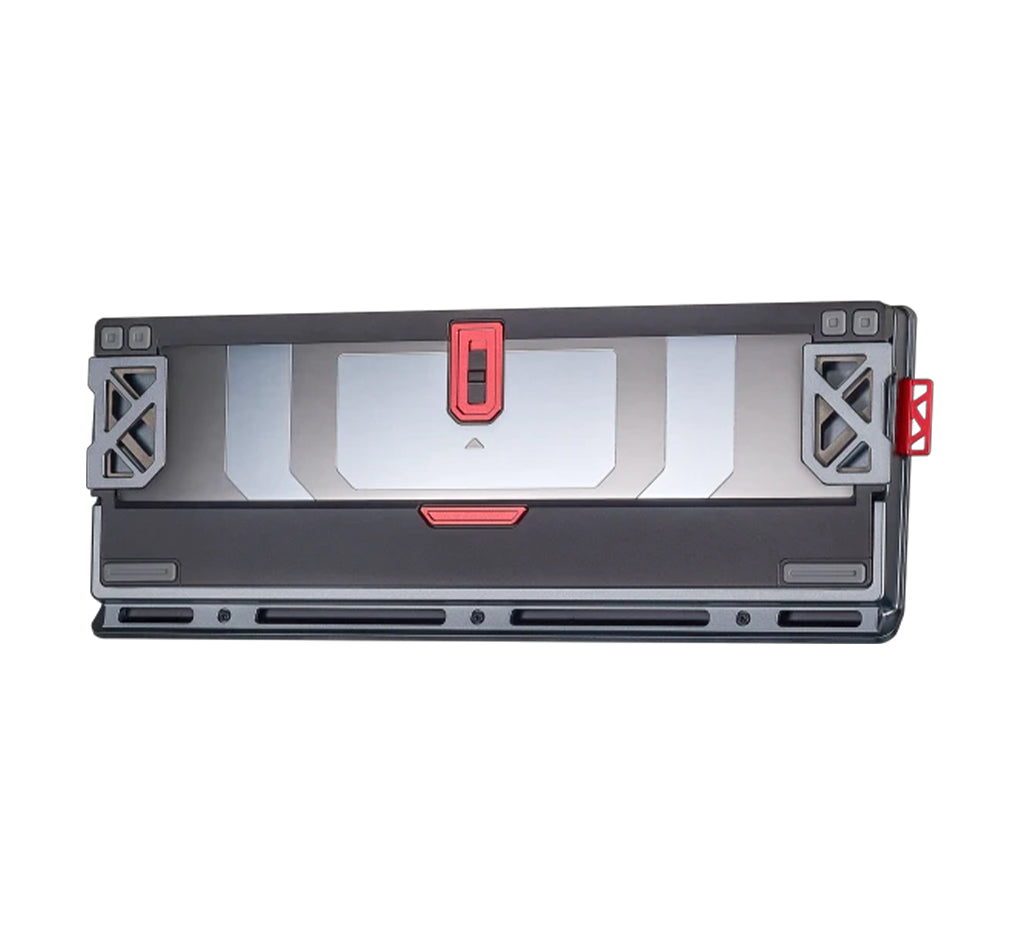

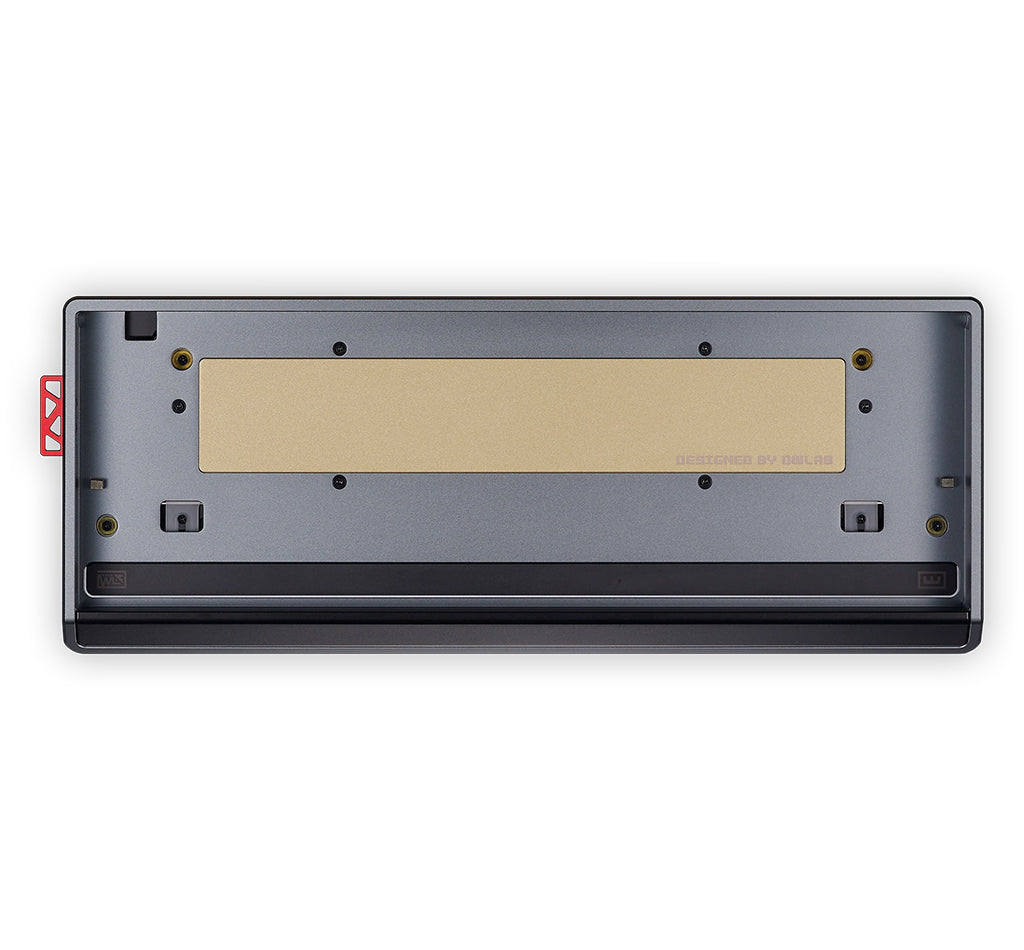

Black version:
Anodized and PVD coated parts: Black, deep gray, metallic silver, and sharp red accents.

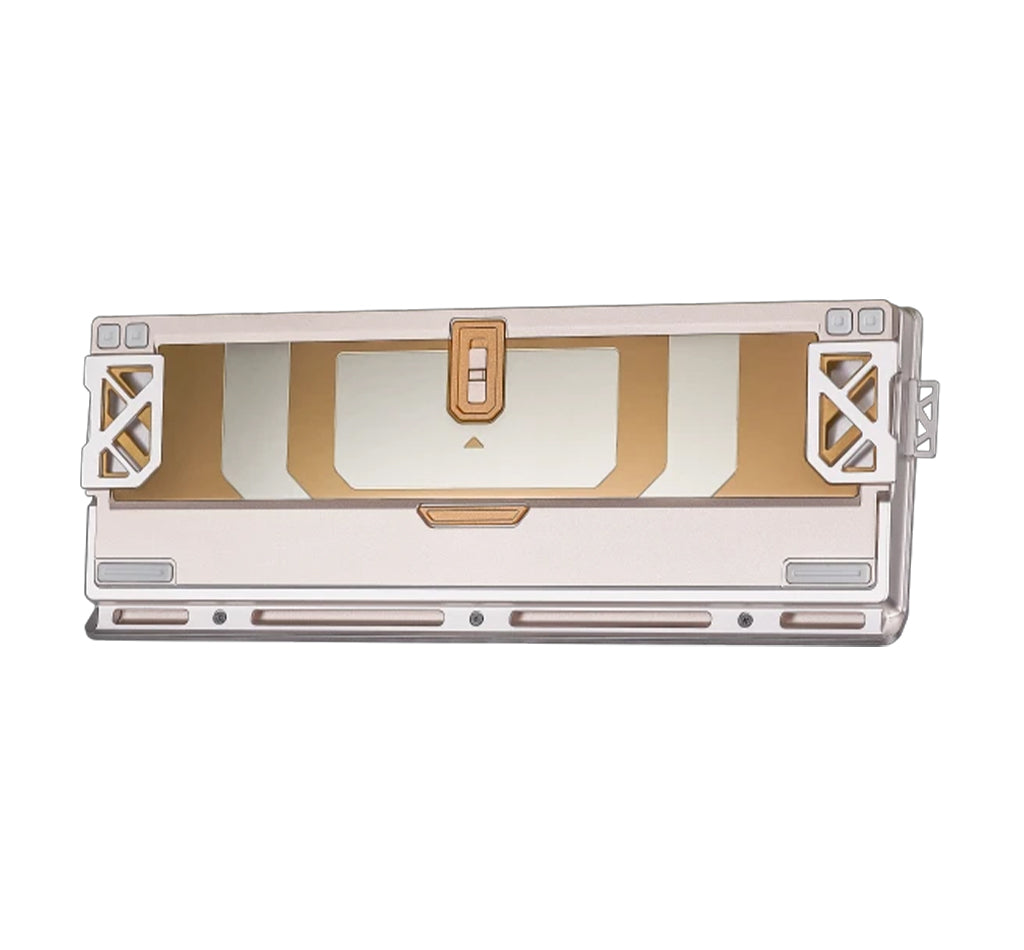

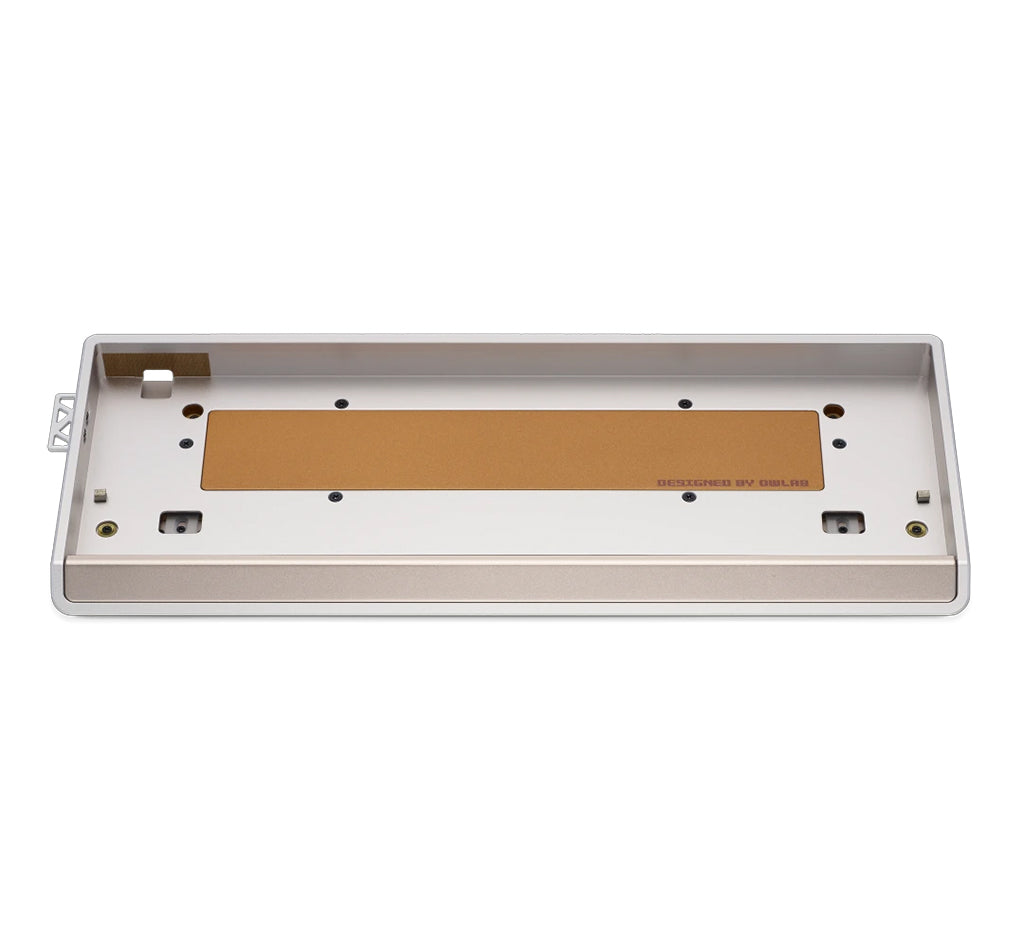

Beige version:
Anodized and PVD coated parts: Champagne gold, silver white and bronze accents.

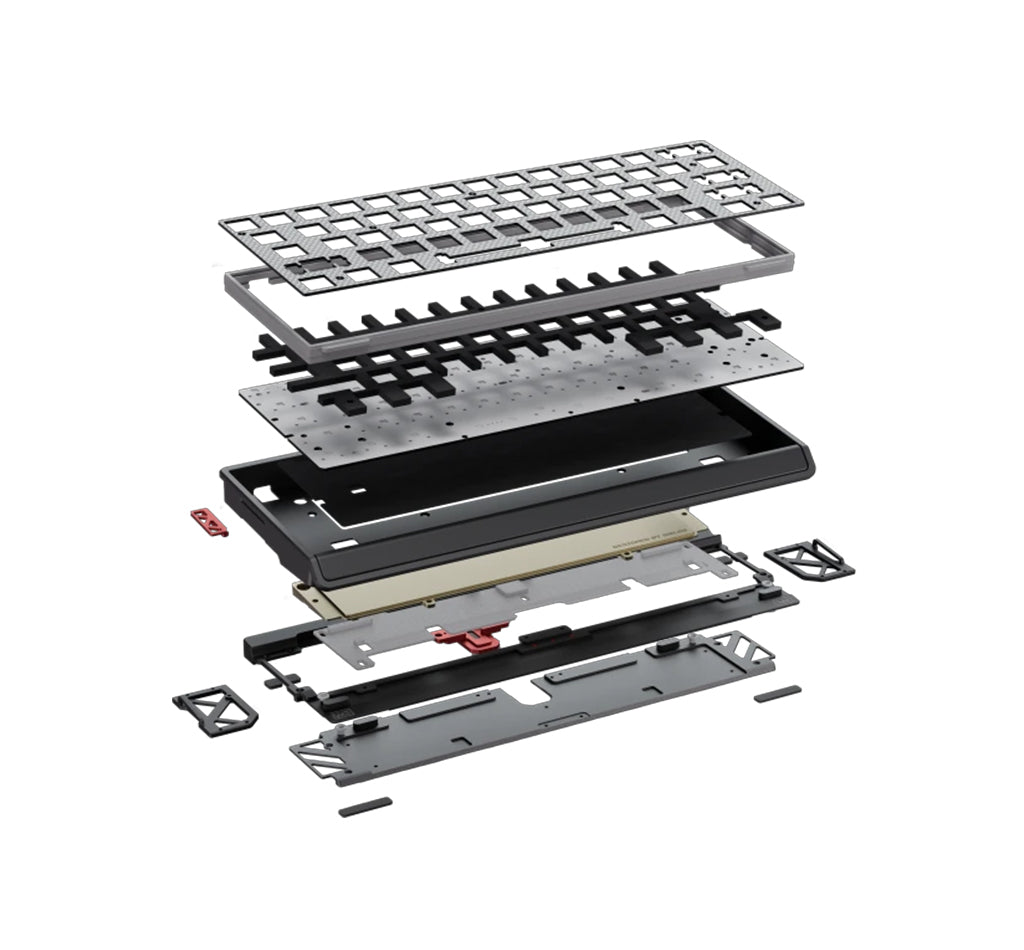

Case Features
Suspension with switch, Many separate pieces with different anodized finishes, PVD layer on the back of the case.

Keyboard Layout
ANSI

Travel Case
Each OW60 case comes in a black/red travel case.
