Monsgeek M1 V3 QMK Barebone Keyboard

Monsgeek M1 V3 QMK Barebone Keyboard

the MonsGeek M1 V3 QMK/VIA International Version
is once again aimed at enthusiasts, offering accessibility across the
globe with more vivid color choices and comprehensive upgrades inside
and out.
With an upgraded knob, simplified design by removing side accents,
and internal improvements for better sound locking and noise reduction,
the M1 V3 will offer greater flexibility for experimenting with
different sound profiles.
A Full-fledged Upgrade

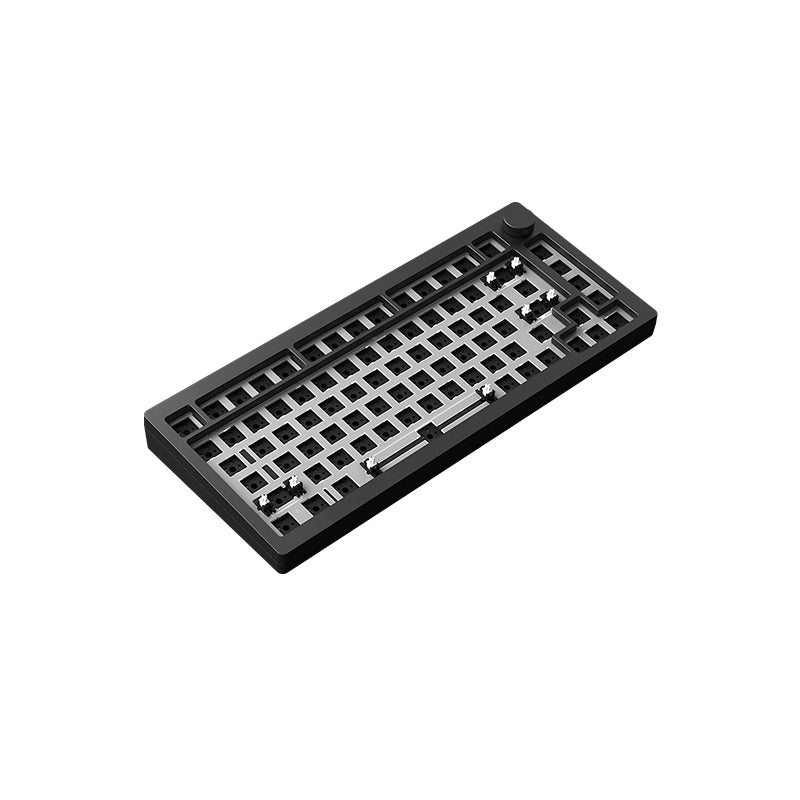

M1 V3 75% Aluminum Barebone
features a full-fledged upgrade to the noise reduction system, and
provides greater flexibility for experimenting with different sound
profiles than before.
An additional PET layer attached to the top of the PCB;
A thicker around 3.0mm top white Poron case foam (with socket
cut-outs) integrated with another PET layer for better sound locking and
 noise reduction;

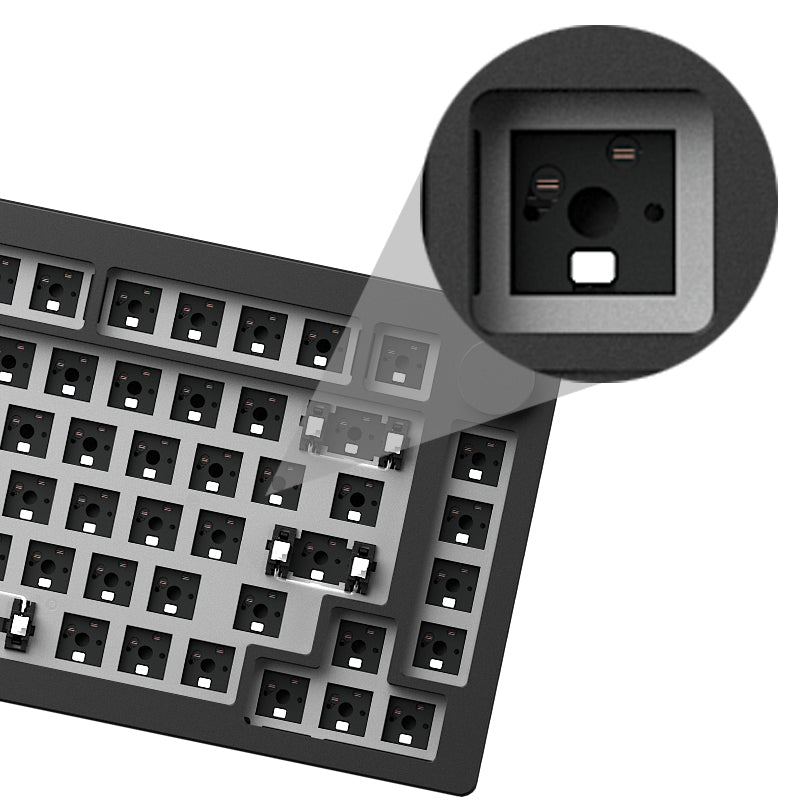

A switch pad/film features premade cross perforations for keeping a
good seal for the best possible effect on the sound of the keyboard.
*Note: For testing purposes during our quality control process you
may encounter a few already existing punctures on the switch pad, please
 do not be alarmed, the product is brand new.

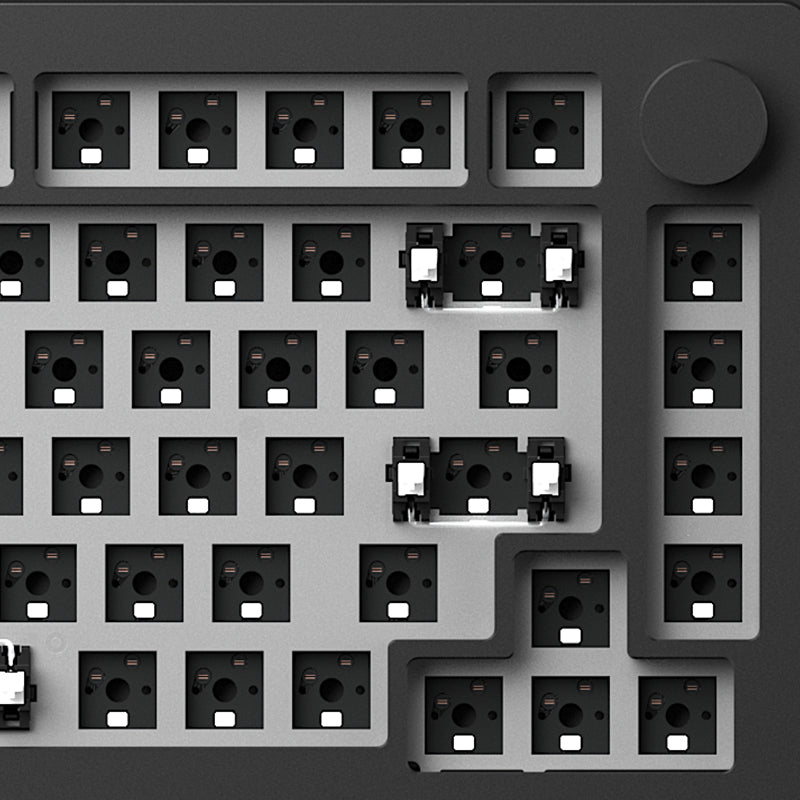

Plate-mounted & Screw-in Stabilizers
M1 V3 barebone kit now features pre-installed plate-mounted TPU
double-shot stabilizers, a change from the original M1 QMK, aimed at
streamlining the assembly process and offering convenience for keyboard
beginners. Additionally, it includes extra PCB Mount/Screw-in
stabilizers to accommodate the varied preferences of users.

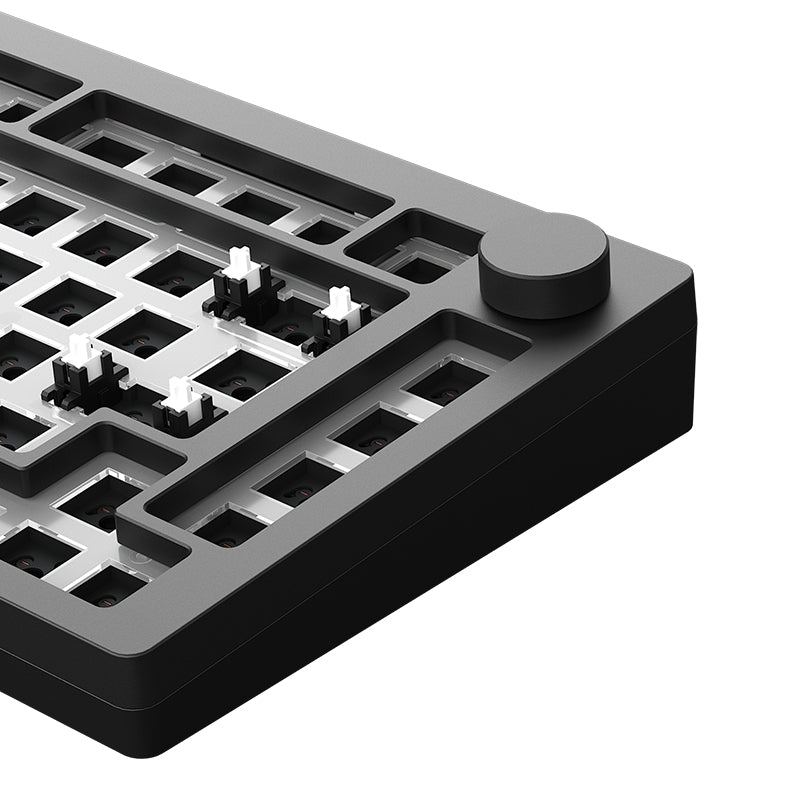

Fully Upgraded Knob
This adjustment is based on user experience and feedback. M1 V3
Series features a new encoder and a levitating structure to avoid
scratches against the case, as reported in the previous version.
Simplicity
By removing the side accent, the consistent support from MonsGeek
fans allows us to balance costs further and focus on delivering an
enthusiast-level keyboard at a reasonable price.

SPECIFICATION:
Model: M1 V3 (international QMK ver)
Mount: Gasket
Case Material : AluminumISO Layout: Y
 Connection : Wired
LED: RGB
Hotswap: Y
PCB Thickness: 1.2mm
Plate: PC
Plate : Foam Poron (White or Black)
Switch Pad:  Premade cross IXPE (White or Black; premade cross perforations may enlarge slightly after QC)
Noise Cancellation Pad : PET
Dampening Pad: Poron (White or Black) +PET
Stabilizers:
1. Pre-assembled Plate-mounted TPU Double-shot Stabilizers
2. Separate Screw-in Stabilizers
Software: VIA/QMK
Cable: Coiled Cable
Size:  Length: 33.2cm; Width: 14.7cm; Back Height: 3.3cm; Back Height: 3.3cm; Front Height: 2.0cm
Barebone Weight: around 1700g
