LAIV Harmony uDAC

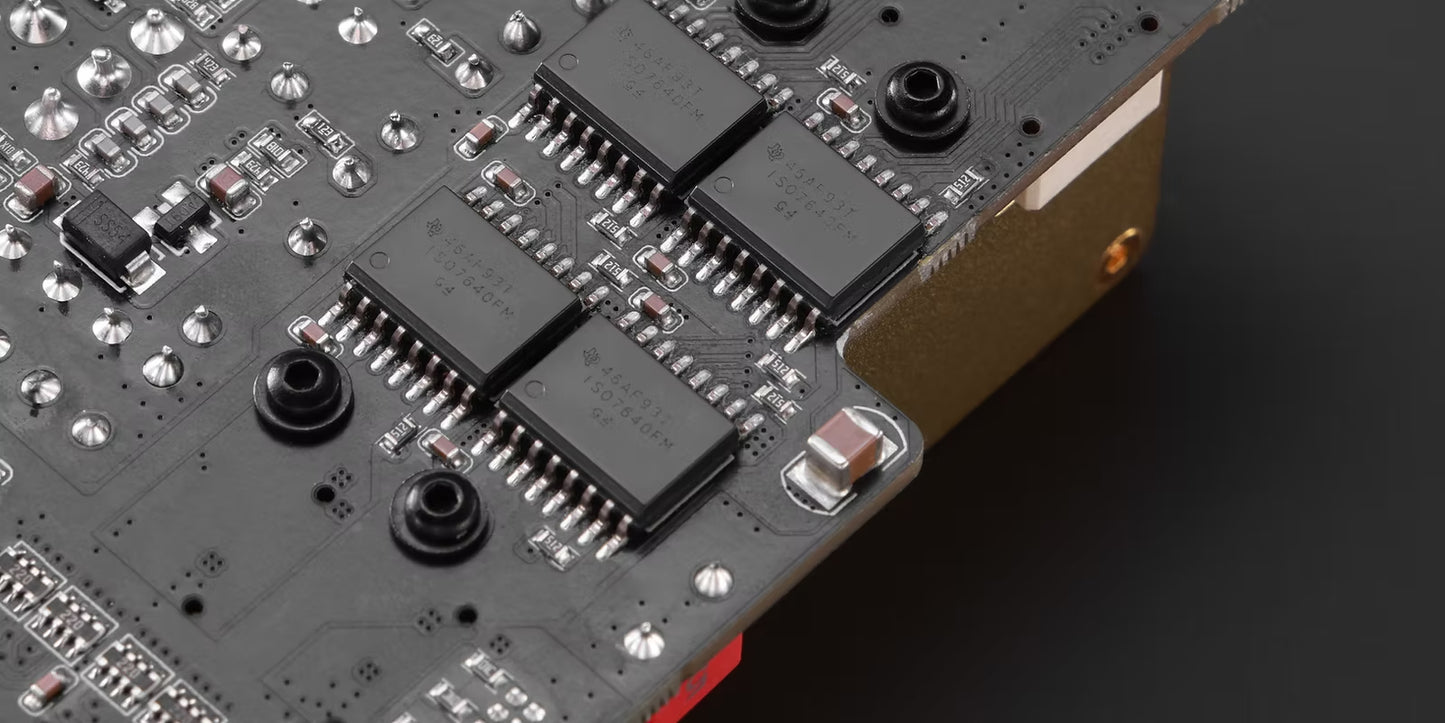

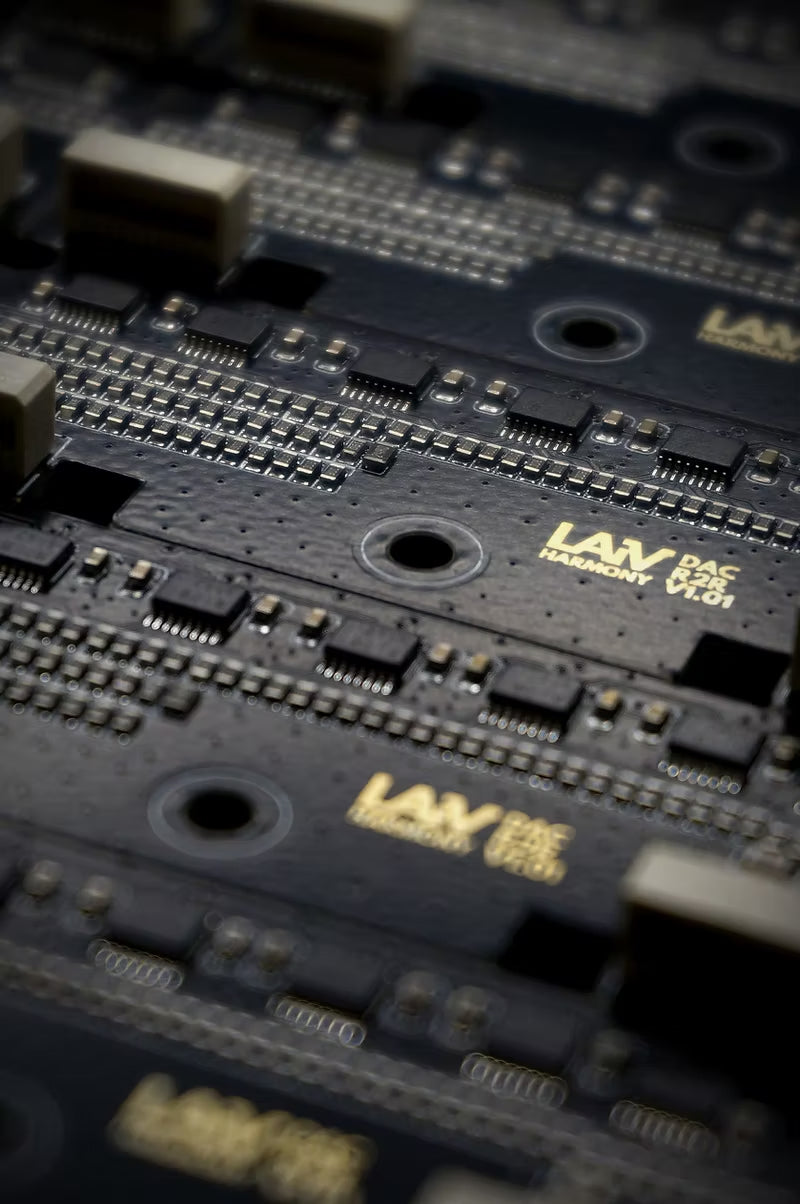

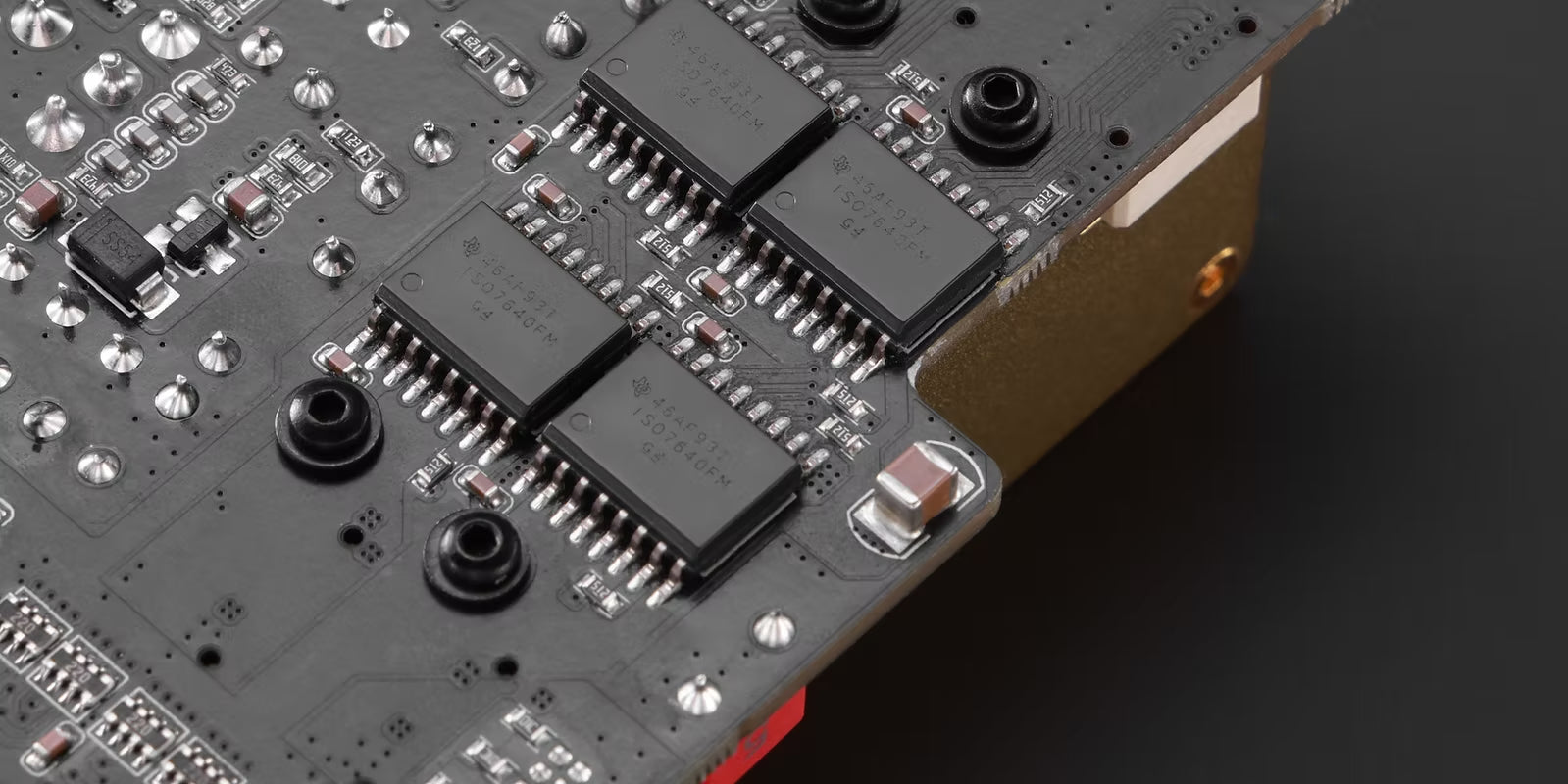

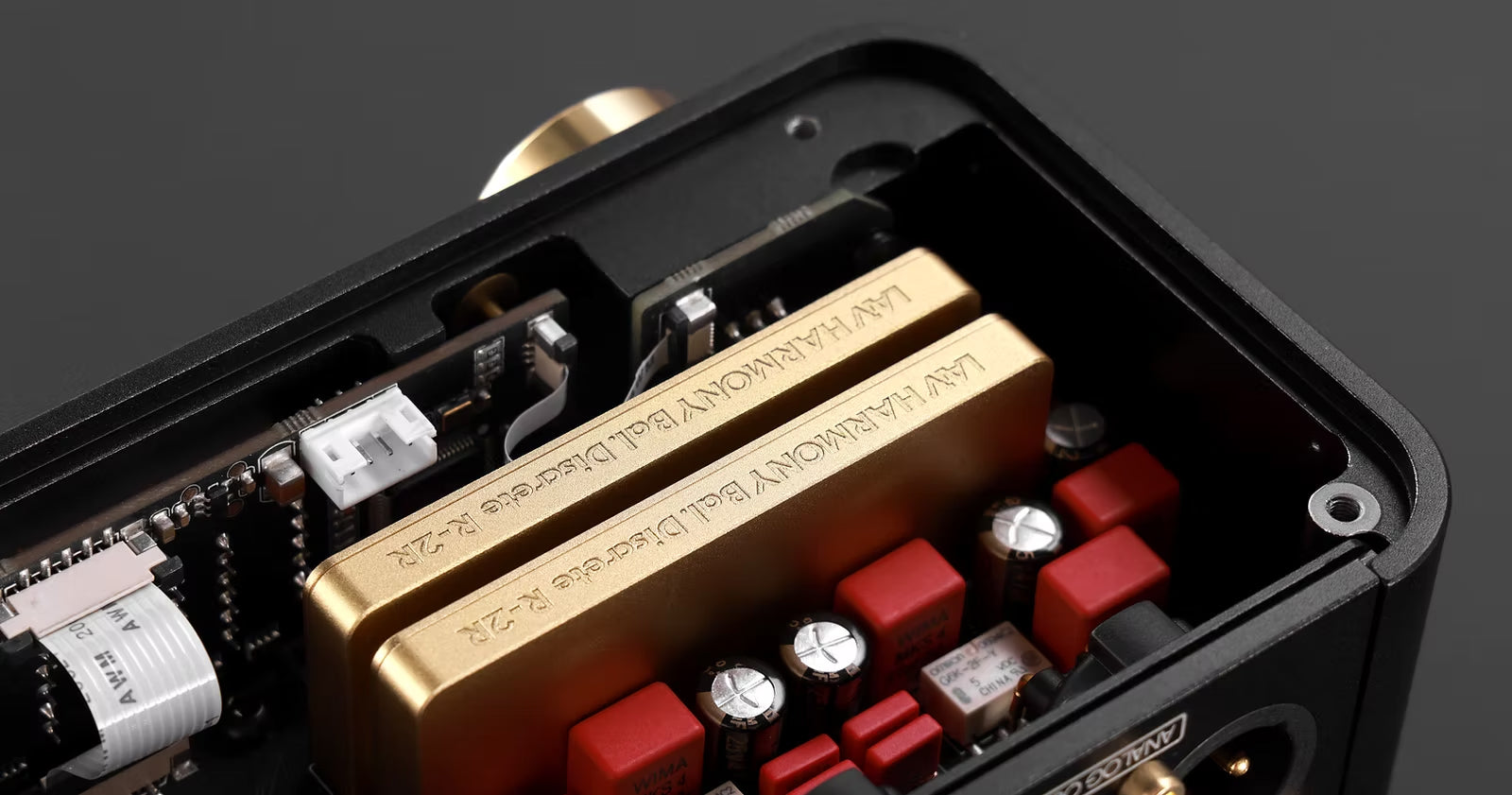

The Harmony µDAC compact audio converter employs a fully balanced discrete R2R architecture, using carefully arranged individual resistors held to a tolerance of 0.05%. This resistor ladder DAC technology eliminates the measurement compromises introduced by chip-based conversion, delivering clear, accurate sound reproduction with stable stereo imaging and a tonal character that feels true to the original recording. For listeners who prioritize authenticity, the discrete R2R DAC design provides an immersive listening experience with exceptional detail and fidelity, in a form factor that belies its performance.

Size and Weight

Width: 168mm

Depth (included connectors): 98mm

Height: 40mm

Spike: 10mm

Weight: 0.7kg

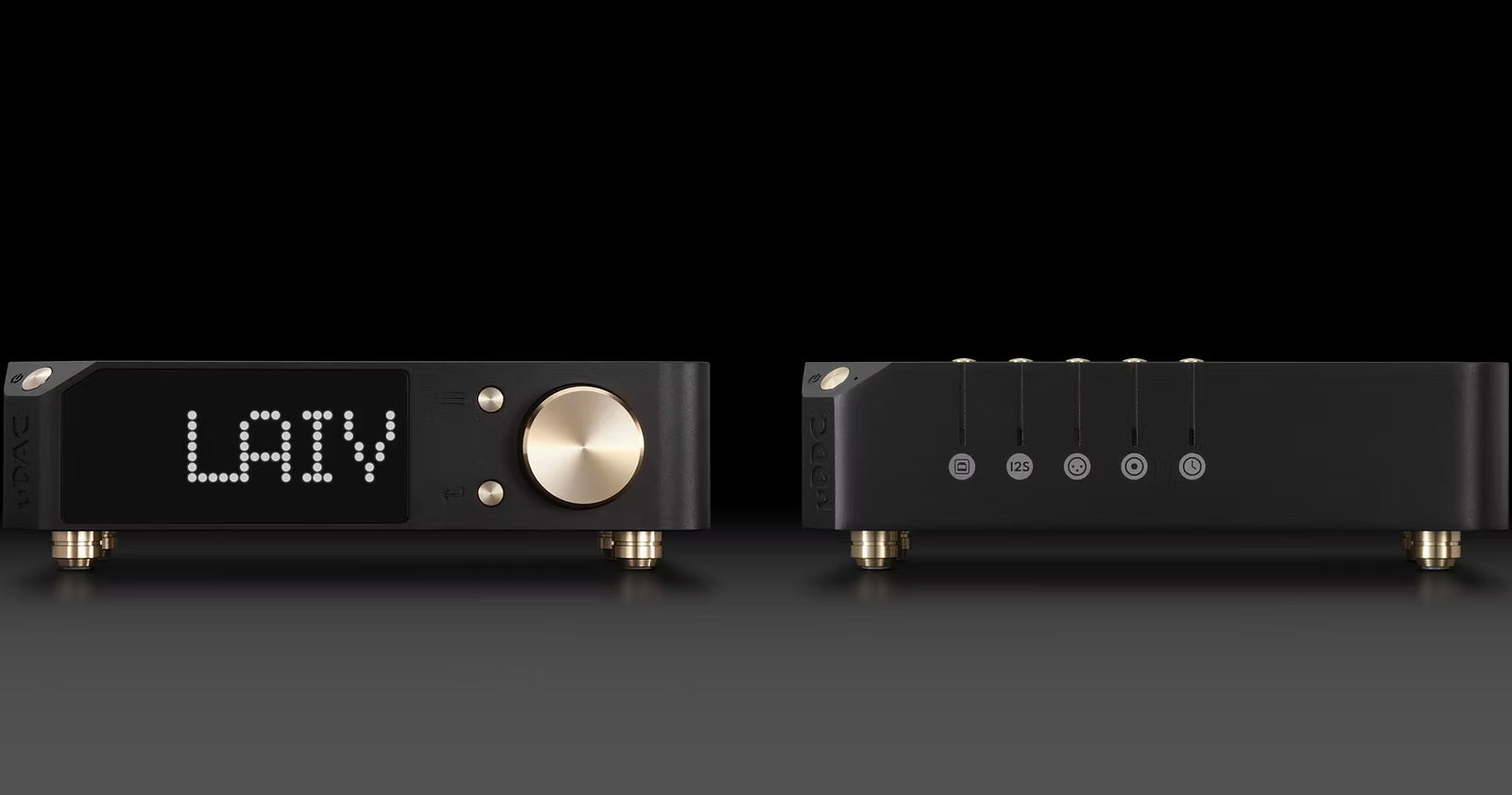

Display

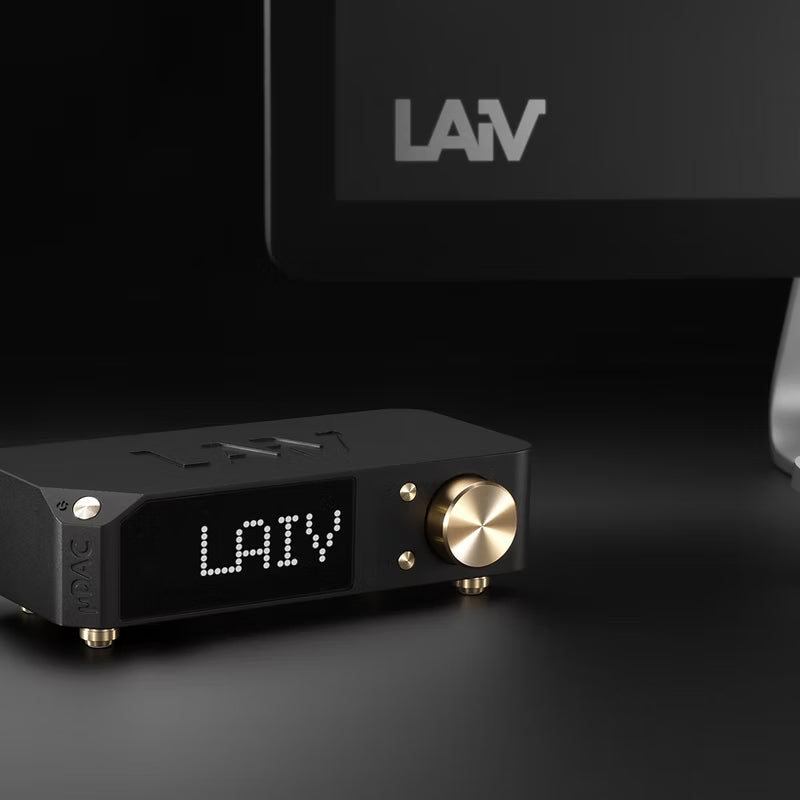

25x7 dot-matrix LED display.

Chip

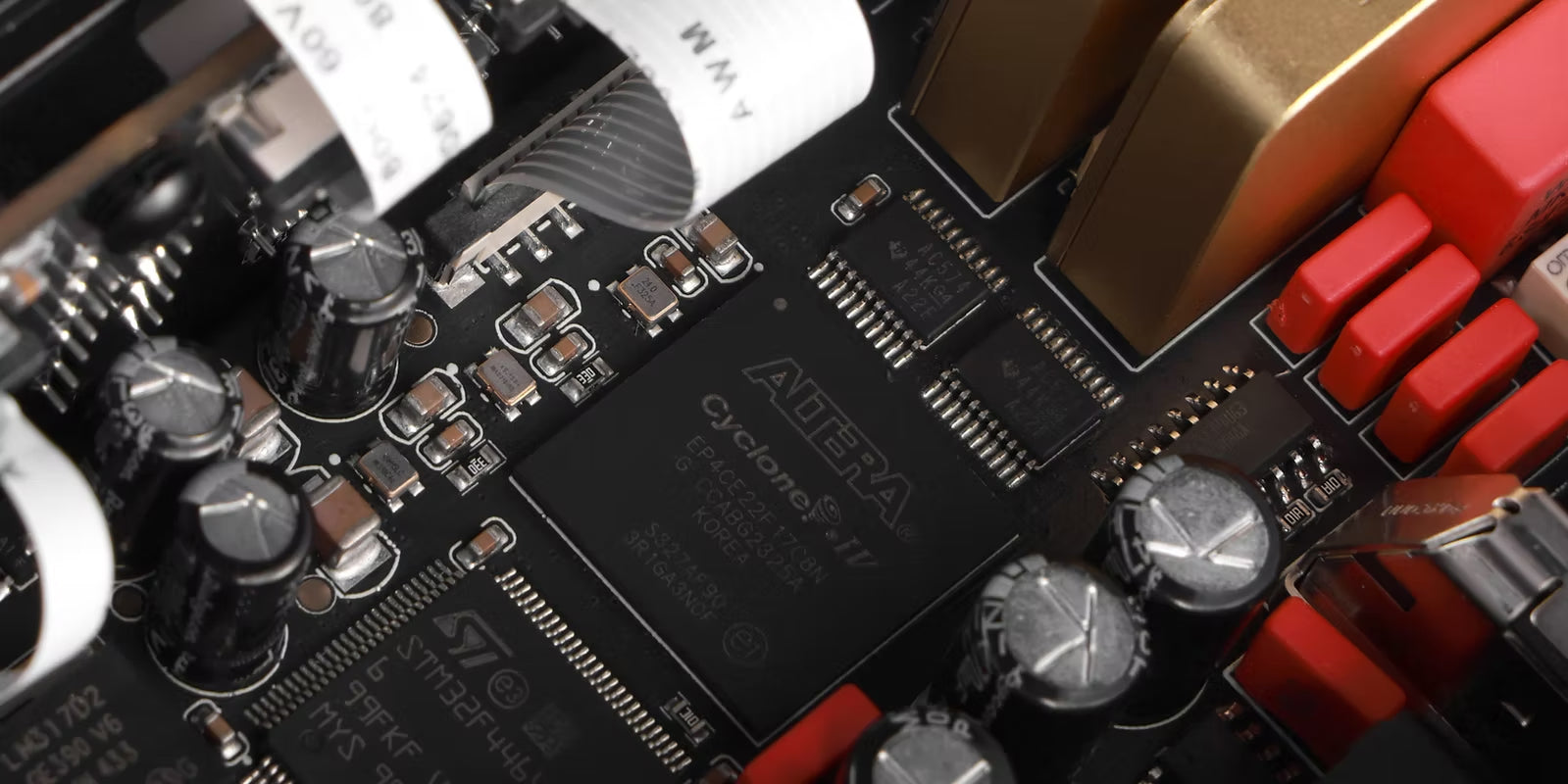

Intel Altera Cyclone FPGA

Clock

Accusilicon AS318-B Ultra-Low Phase Noise FEMTO Oscillator

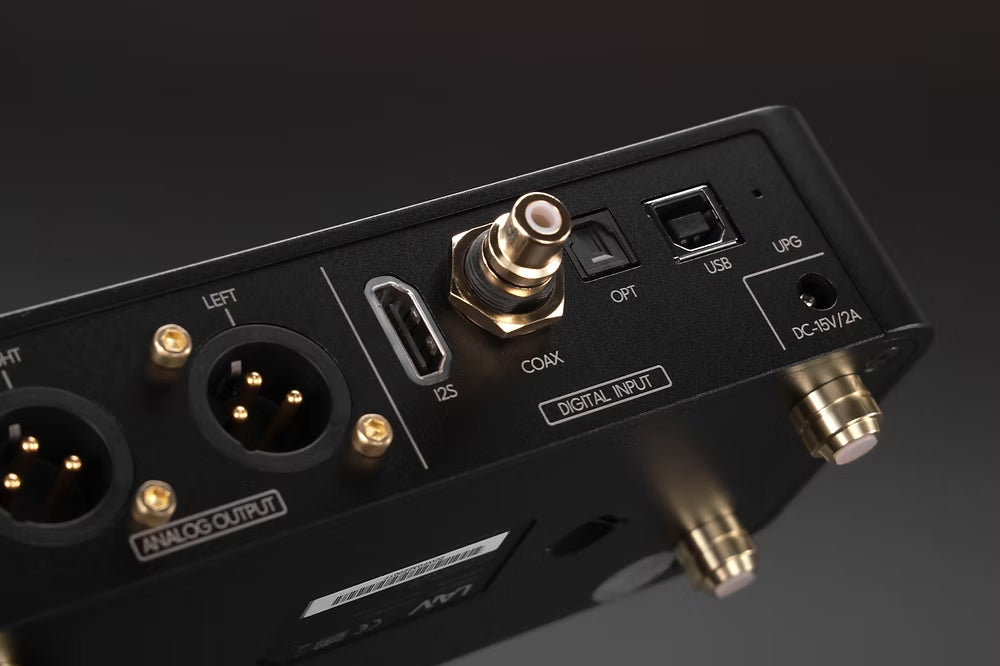

Digital Inputs

1 x USB

1 x Optical

1 x Coaxial

1 x I2S

Analogue Outputs

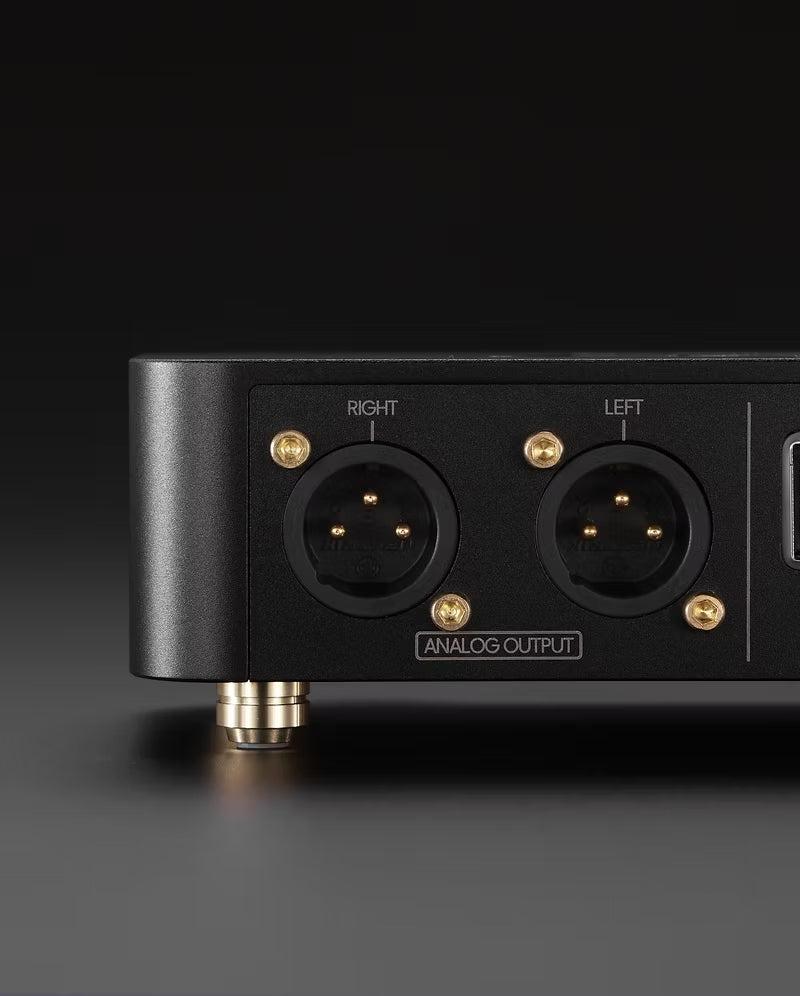

1 x XLR, maximum at 4 Vrms, approx. 82 Ω

Supported Formats (Input dependent)

USB

PCM: 44.1kHz - 768kHz

DSD: DSD64 - DSD256

Optical

PCM: 44.1kHz - 192kHz

DSD: DSD64 via DoP only

Coaxial

PCM: 44.1kHz - 192kHz

DSD: DSD64 via DoP only

I2S

PCM: 44.1kHz - 768kHz

DSD: DSD64 - DSD256

Frequency Response: 20Hz – 20kHz, within ± 0.25 dB

THD+N: 0.006 %

Crosstalk: ≤ -120 dB

Signal to Noise Ratio (SNR): ≥ 125 dB

Dynamic Range: ≥ 110 dB

Controls: Remote control, Front panel

Power: 15VDC / 2A, DC 5.5/2.5 mm female.
