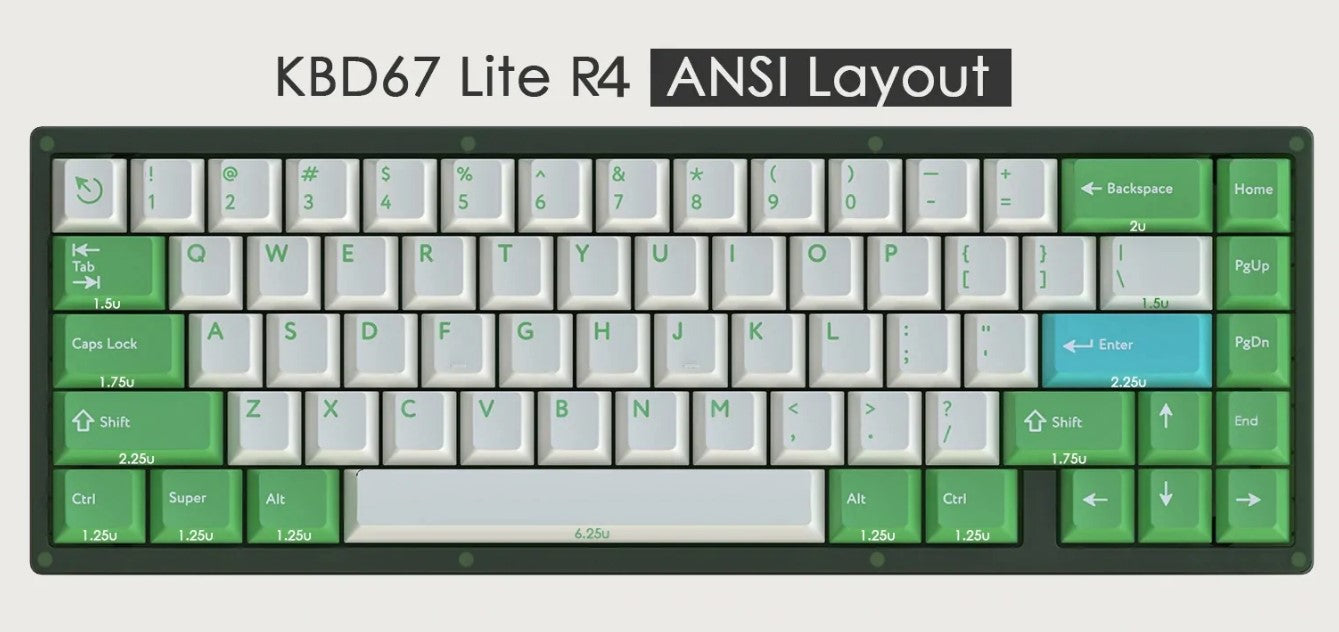

KBDFANS KBD67 LITE MECHANICAL KEYBOARD DIY KIT R4
WIRED VERSION. ANSI.
WIRELESS VERSION COMES WITH BATTERY. ANSI
THIS IS A DIY KIT. SWITCHES AND KEYCAPS NOT INCLUDED.
SPECS
Top and Bottom ABS plastic case
Mute silicone
Cherry screw-in stabilizers 60 set
Wired version supports VIA;
Bluetooth version supports TMK firmware, it already supports the VIA tool.
Before using VIA, you need to replace the old file with a new bin file
and load the Json file from VIA.YD67BLE.BIN YD67BLE_json_via.json
Wired version supports Per-key RGB and Hot-swap;
Bluetooth version does not support RGB effects
Injection molding polycarbonate plate (No necessary to add stand-offs)
USB-C supports MAC, Windows, Linux, etc.
Compatible with MX and MX clone switches
KBD67 Lite Acceptable Quality Standards: Click QC standard
Made in China
Typing angle: 6 degree
Designed by KBDfans
Include
PCB x1
Case x1
Plate x1
Stabilizers 60 set x1
Mute silicone x1
Bottom foam x1
USB-C cable x1
KBD67 Lite Carrying case x1
KBDfans stabilizers foam stickers set x1
Rubber feet and Screws
Wired PCB Specs
KBD67 MarK II Hot-swap PCB/ KBD67 MarK II RGB-ISO PCB
Fixed layout
Support Per-key RGB
Based on QMK
Support VIA
Kailh hot-swap sockets
Wired PCB Flash Manual
kbd67_markii rgb_v2_via.hex
kbd67_markii rgb v3_via.bin kbd67markiirgb_v3.json (New Flash Manual)
kbd67 markii ISO rgb via.bin (New Flash Manual)
Wireless PCB Specs
WIRELESS VERSION COMES WITH A BATTERY ALREADY.
Bluetooth 4.0 Dual-mode version
Fixed layout
No Per-key RGB, has an indicator on the caps lock key
Based on TMK or VIA
YD67BLE.BIN YD67BLE_json_via.json
Update by ydkb.io
Gateron hot-swap sockets
KBD67 Lite Bluetooth Version Tutorial
Battery included:
Lithium polymer, 3.7V battery
The connector is PH2.0
Not Pre-assembled
THIS IS A DIY KIT. SWITCHES AND KEYCAPS NOT INCLUDED.
