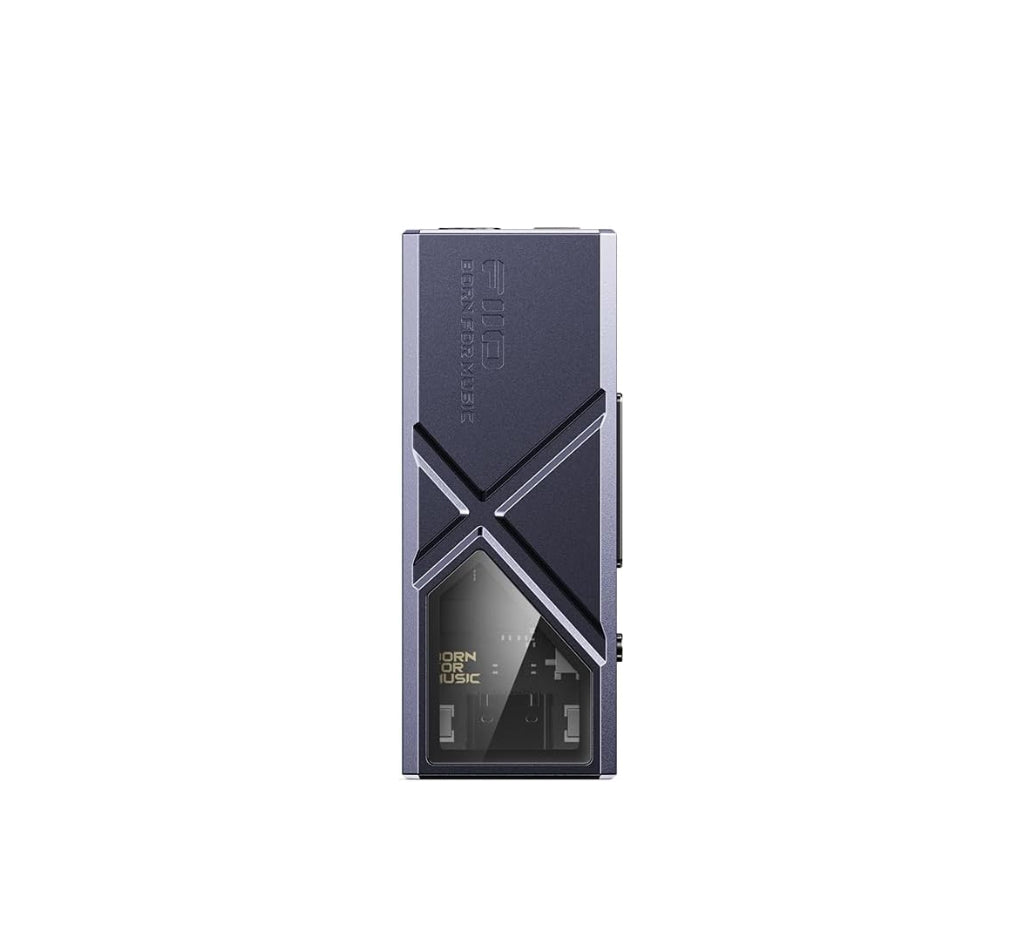

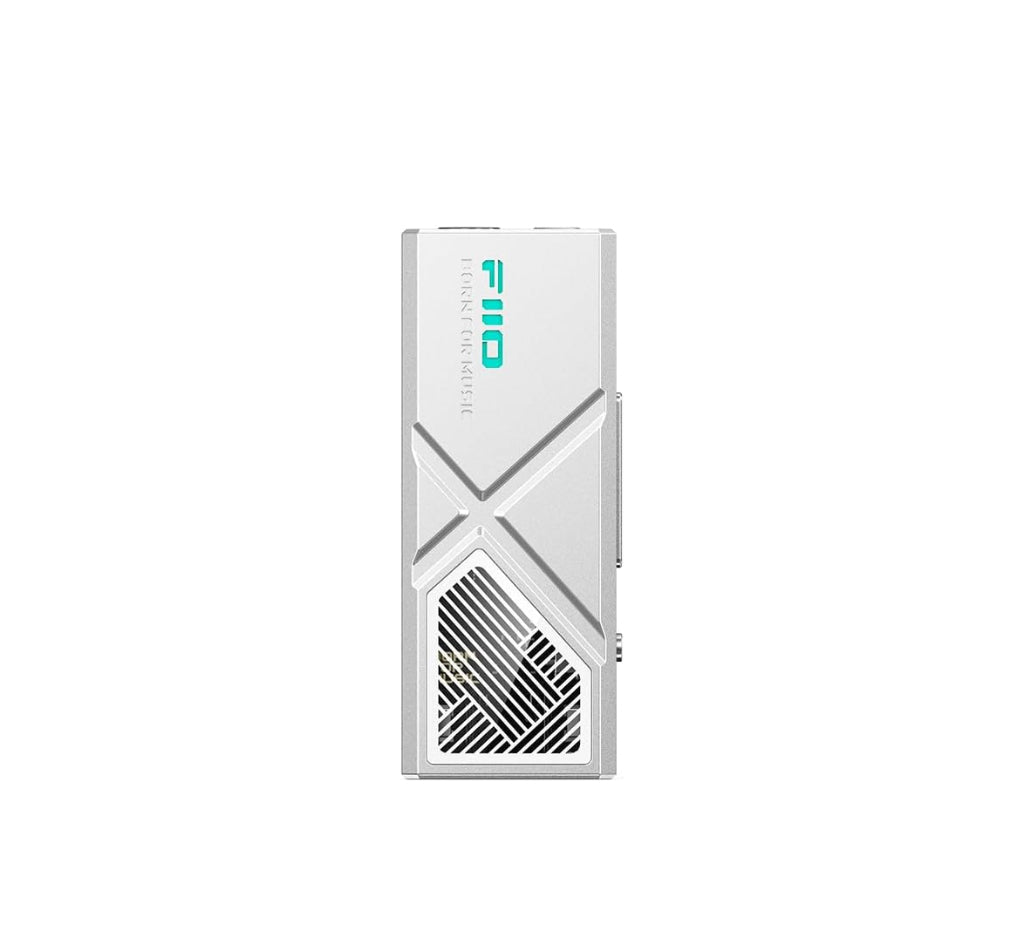

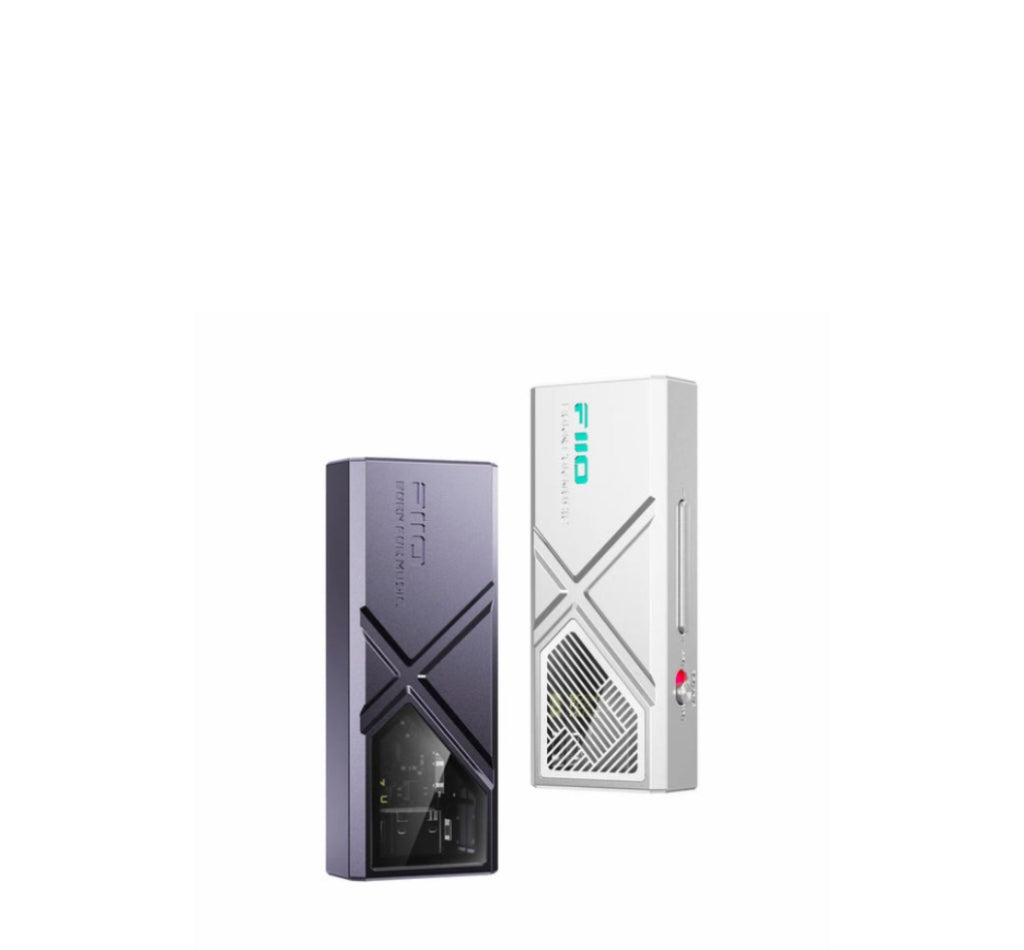

FiiO KA13 Portable DAC and Headphone Amplifier
Elevating Dongle Performance to Desktop Levels
Dual Cores: A Golden Combination
Mini Desktop Amp, Maximum Performance
High-Res Decoding for Enhanced Detail
Dual Outputs: Pioneering Design
Included Adapter Cables for Versatile Compatibility
RGB Ambient Light Window
Comprehensive Control with the FiiO Control App
Aggressive Style with Futuristic Appeal
Elevating Dongle Performance to Desktop Levels
Drawing inspiration from its desktop-grade predecessors like the M17 and DAC/amp Q7, and the portable yet powerful M15S, the FiiO KA13 introduces a mini desktop amp with a dedicated desktop mode. Experience the KA13's ability to deliver desktop-level performance in a compact dongle form factor, setting new standards for audio gear on the go.
Dual Cores: A Golden Combination
Powered by dual CS43131 DAC chips and dual SGM8262 op-amps, the KA13 offers exceptional performance that redefines your music listening experience. Rediscover your music collection with newfound detail and clarity.
Mini Desktop Amp, Maximum Performance
The KA13 features a desktop mode, indicated by the engraved lightning bolt logo, boosting balanced output power up to 550mW. This capability enables the KA13 to drive both low and high-impedance headphones with outstanding dynamics and detail.
High-Res Decoding for Enhanced Detail
Despite its compact size, the KA13 supports up to 32bit/384kHz PCM and DSD256 formats, ensuring high-resolution audio playback that reveals intricate details in your music.
Dual Outputs: Pioneering Design
In a remarkable feat of engineering, the KA13 accommodates both a 3.5mm single-ended headphone out and a 4.4mm balanced headphone out. This achievement showcases FiiO's innovation in packaging technology, delivering versatility in headphone connectivity.

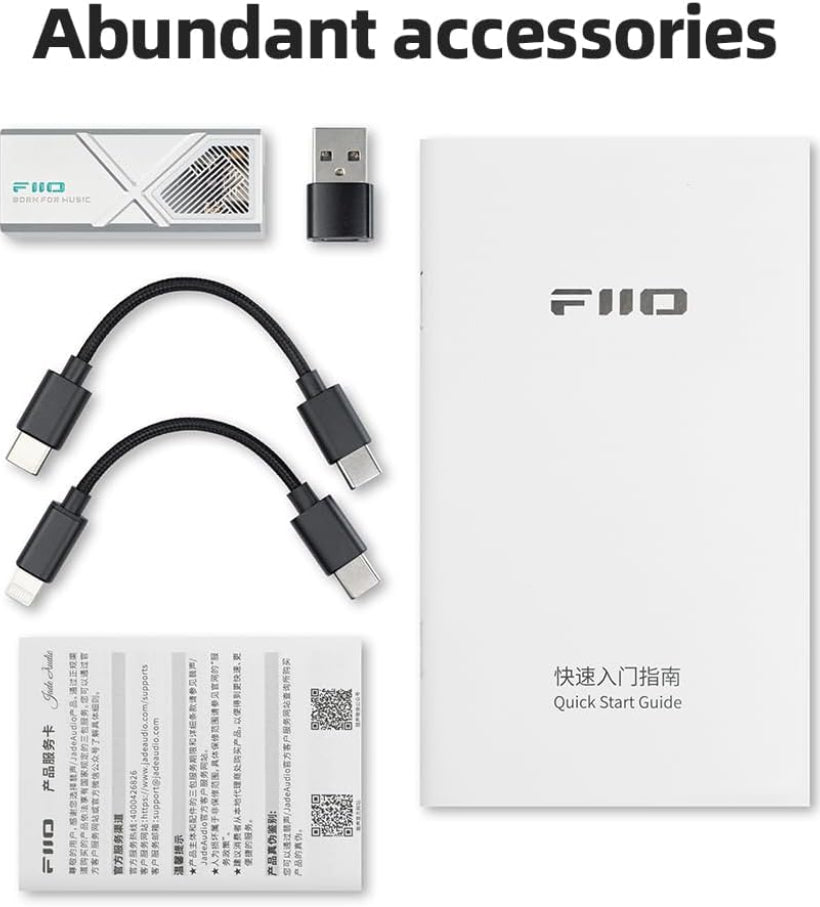

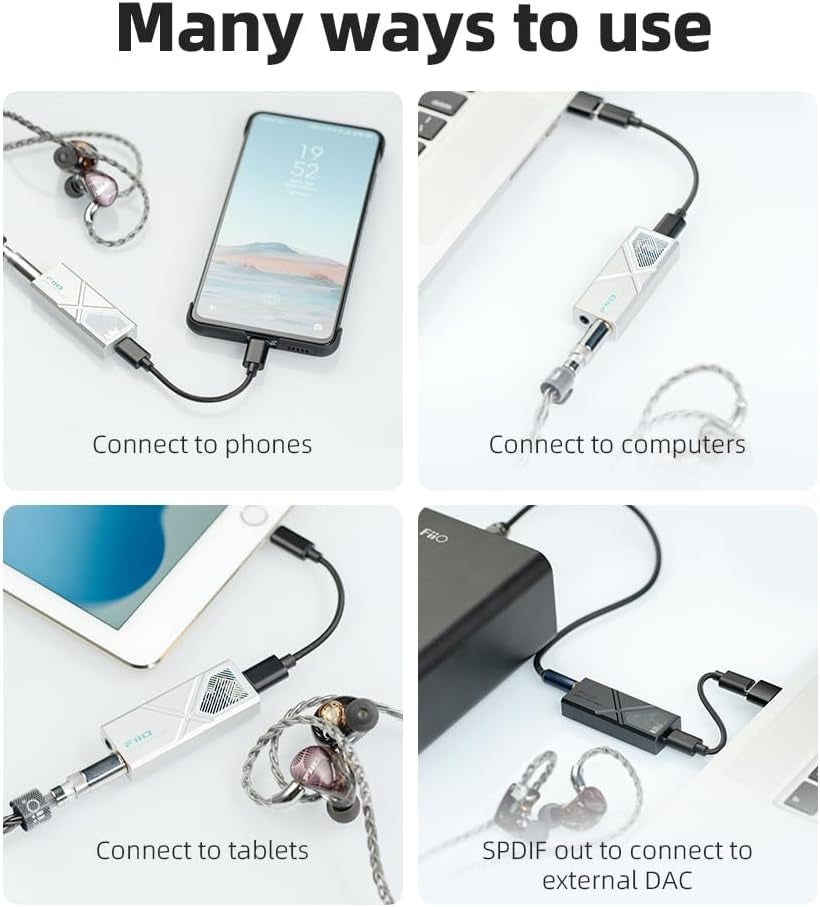

Included Adapter Cables for Versatile Compatibility
With its detachable cable design and included Type-C and Lightning adapter cables, the KA13 seamlessly connects to Android, iOS, Windows, and Mac devices, offering hassle-free compatibility across various platforms.
Technical Details
DAC: CS43131 * 2:
Op-Amp: SGM8262 * 2
Supported audio formats: 384kHz/32bit, DSD256
USB connector: Type-C USB 2.0
Dimensions: Approximately 56.3 * 22 * 10.5mm
Weight: Approximately 18.5g (excluding cable)
Output power (single-ended): L+R ≥ 170mW + 170mW (32Ω/THD+N < 1%)
Output power (balanced): L+R ≥ 550mW + 550mW (32Ω/THD+N < 1%)
SNR (single-ended): ≥ 123dB (32Ω/A-weighted)
SNR (balanced): ≥ 122dB (32Ω/A-weighted)
Noise floor: PO < 1.7μV (A-weighted); BAL < 3.1μV (A-weighted)
Output impedance (single-ended): < 1.7Ω (32Ω load)
Output impedance (balanced): < 1.8Ω (32Ω load)
THD+N (single-ended): < 0.0005% (32Ω)
THD+N (balanced): < 0.0005% (32Ω)
Inside the Box
1 x FiiO KA13
User Manual
