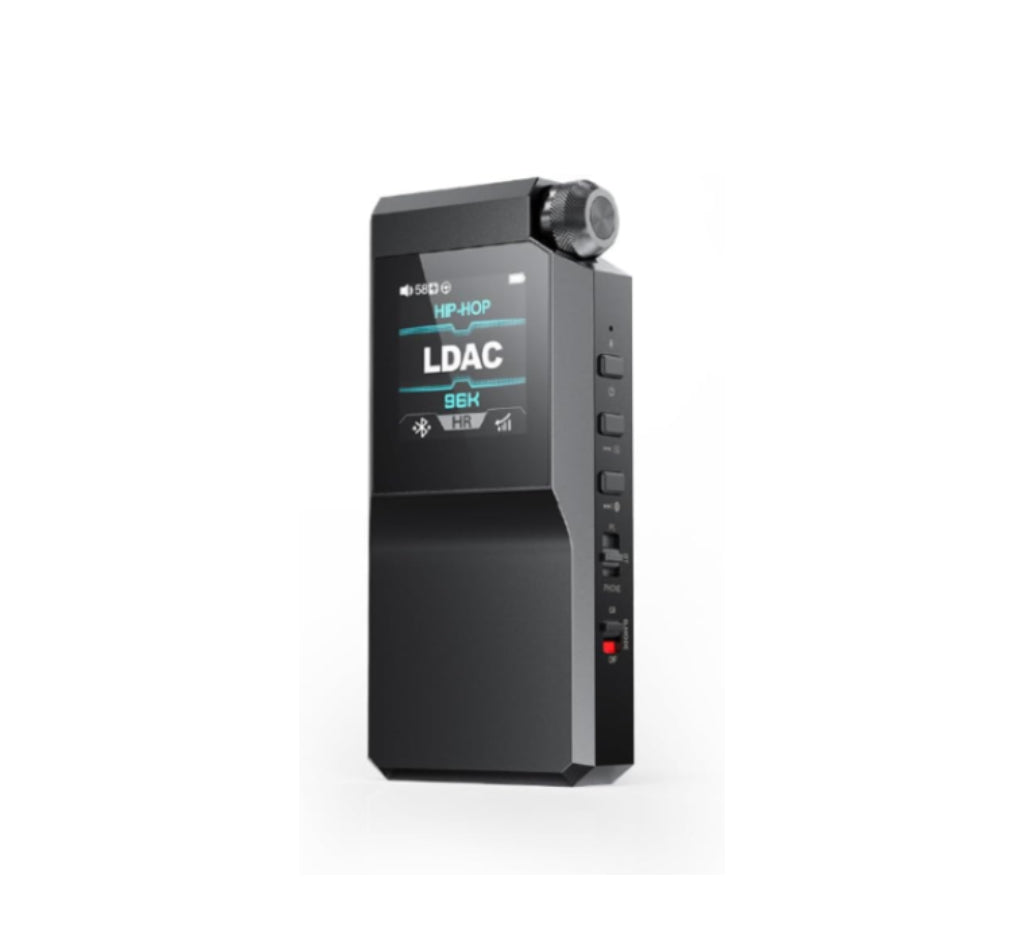

FiiO BTR17 Portable Bluetooth DAC and Headphone Amplifier
Flagship Qualcomm Bluetooth Platform QCC5181, Bluetooth 5.4
Supports LDAC, aptX Lossless

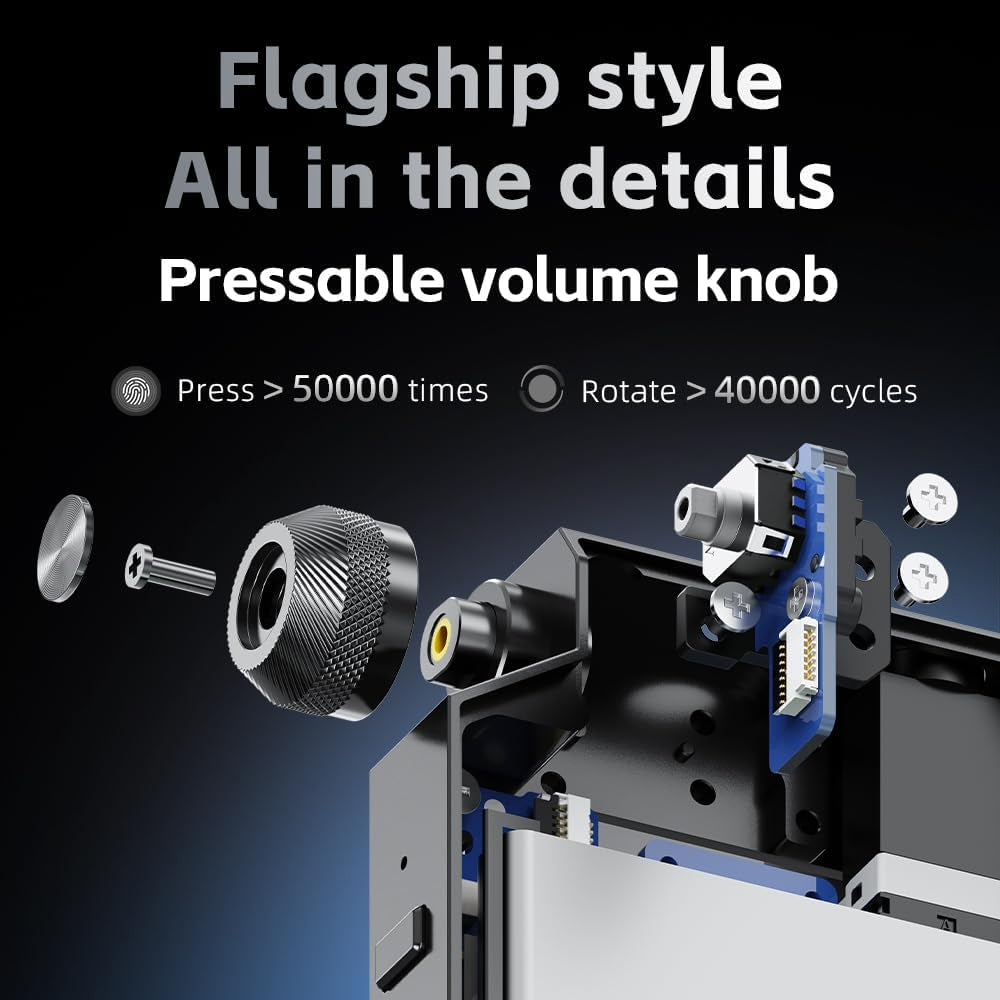

Physical Control Knob

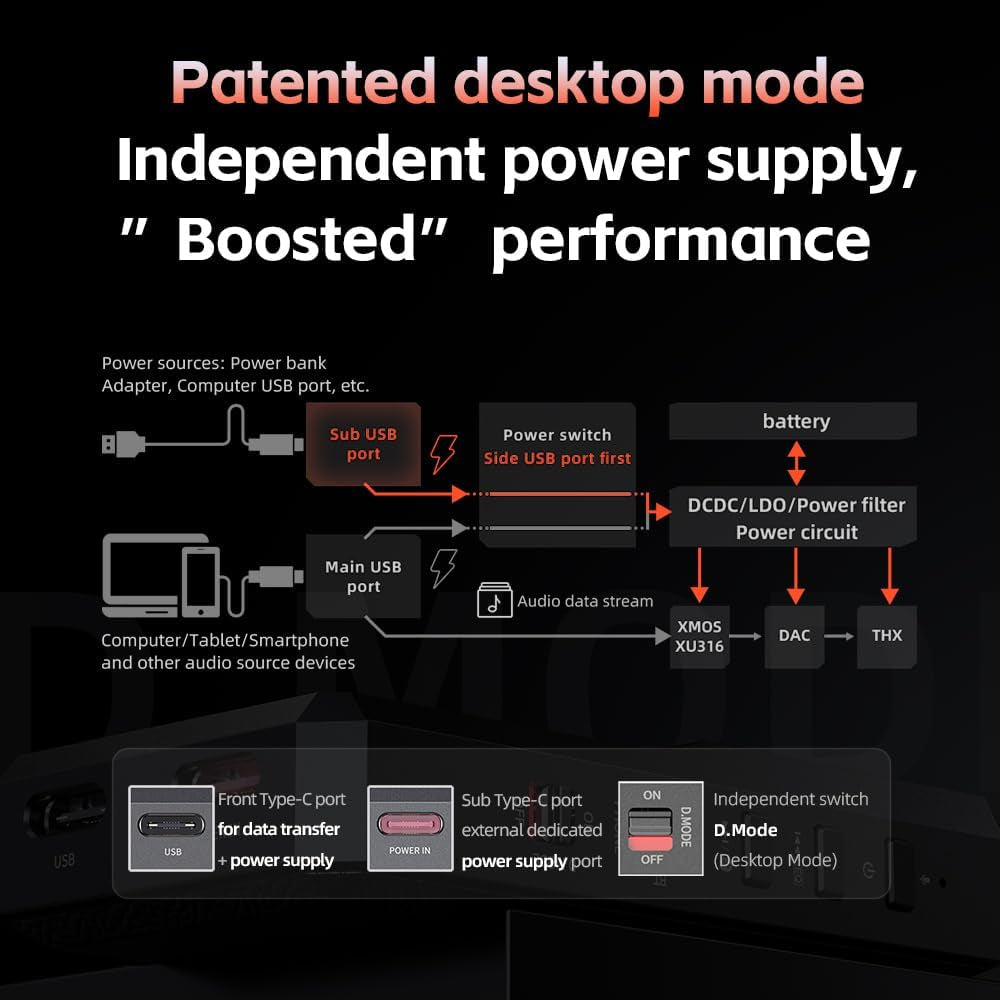

Desktop Mode 650mW+650mW Powerful Output
Dual Flagship DACs ES9069Q*2
10-Band High-Precision Parametric Equalizer (PEQ)

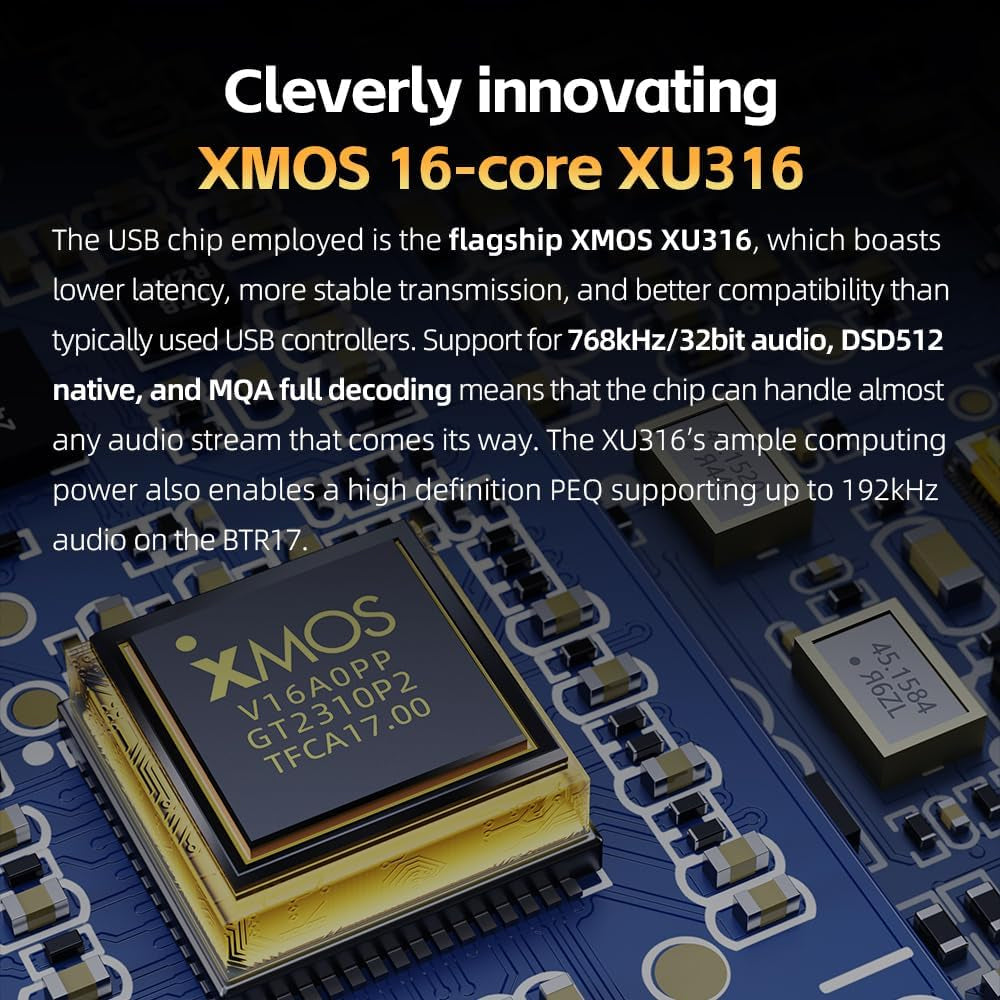

XMOS 16-Core XU316
Four-Way Full Balanced THX AAA 78+ Amps
Technical Details
USB Chip: XMOS XU316
USB DAC: 768kHz-32bit, DSD512 native, MQA full decoding
USB DAC Driver-Free Mode: Supported
Bluetooth Chip: QCC5181
Bluetooth Version:5.4

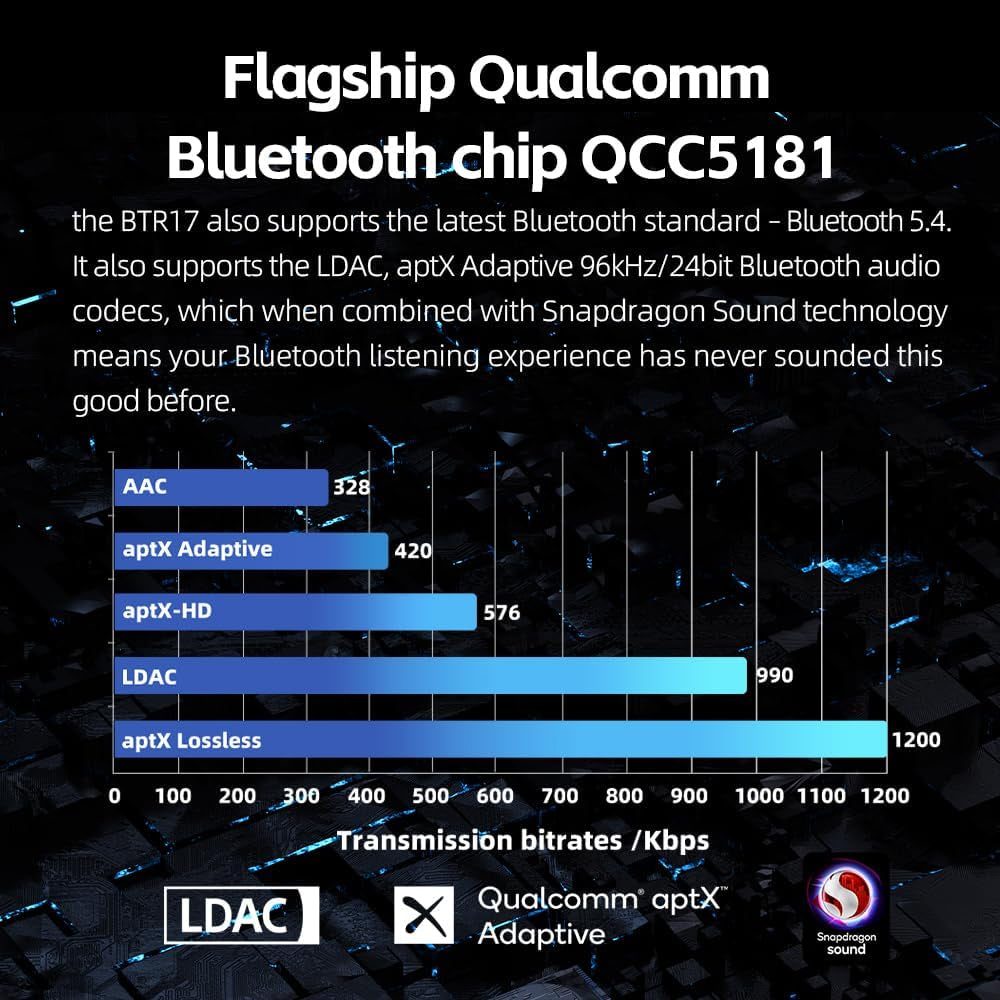

Bluetooth Formats Supported: AAC/SBC/aptX/aptX Adaptive/aptX Lossless/aptX HD/LDAC
DAC: ES9069Q*2
Display: 1.3-inch 240x240 color IPS
Battery Life: About 8 hours (LDAC)
Charging Time: ≤2H
Headphone Outputs: Single-ended 3.5mm + balanced 4.4mm
Output Power 1: L+R > 280mW+280mW (32Ω, THD+N < 1%, single-ended, desktop mode)
Output Power 2: L+R ≥ 31mW+31mW (300Ω, THD+N < 1%, single-ended, desktop mode)
Output Power 3: L+R ≥ 650mW+650mW (32Ω, THD+N < 1%, balanced, desktop mode)
Output Power 4: L+R ≥ 125mW+125mW (300Ω, THD+N < 1%, balanced, desktop mode)
Output Power 5: L+R > 300mW+300mW (32Ω, THD+N < 1%, balanced, non-desktop mode)
Output Power 6: L+R ≥ 140mW+140mW (32Ω, THD+N < 1%, single-ended, non-desktop mode)
Signal-to-Noise Ratio: ≥126dB (UAC decoding, desktop mode, A-weighted)
THD+N: <0.00035% (UAC decoding, desktop mode, balanced output)
Dimensions: About 16.3x41.2x86.6mm
Weight: About 73.4g

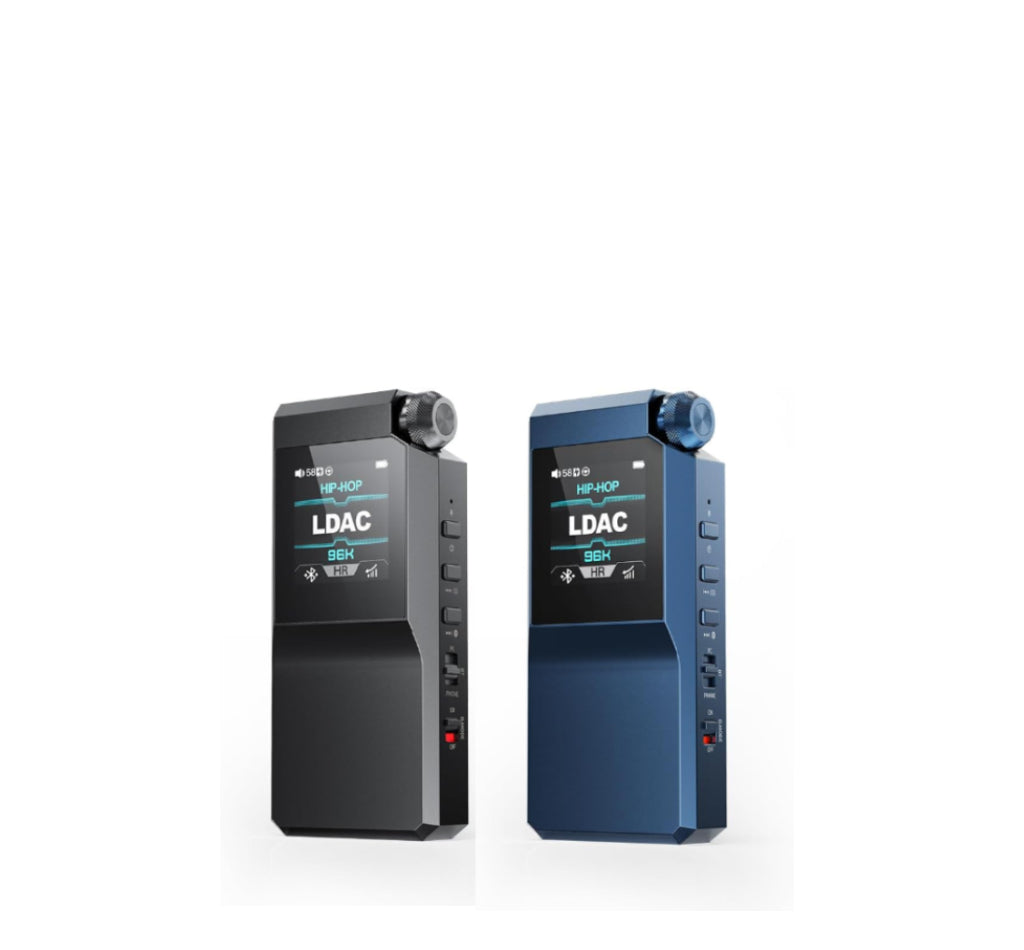

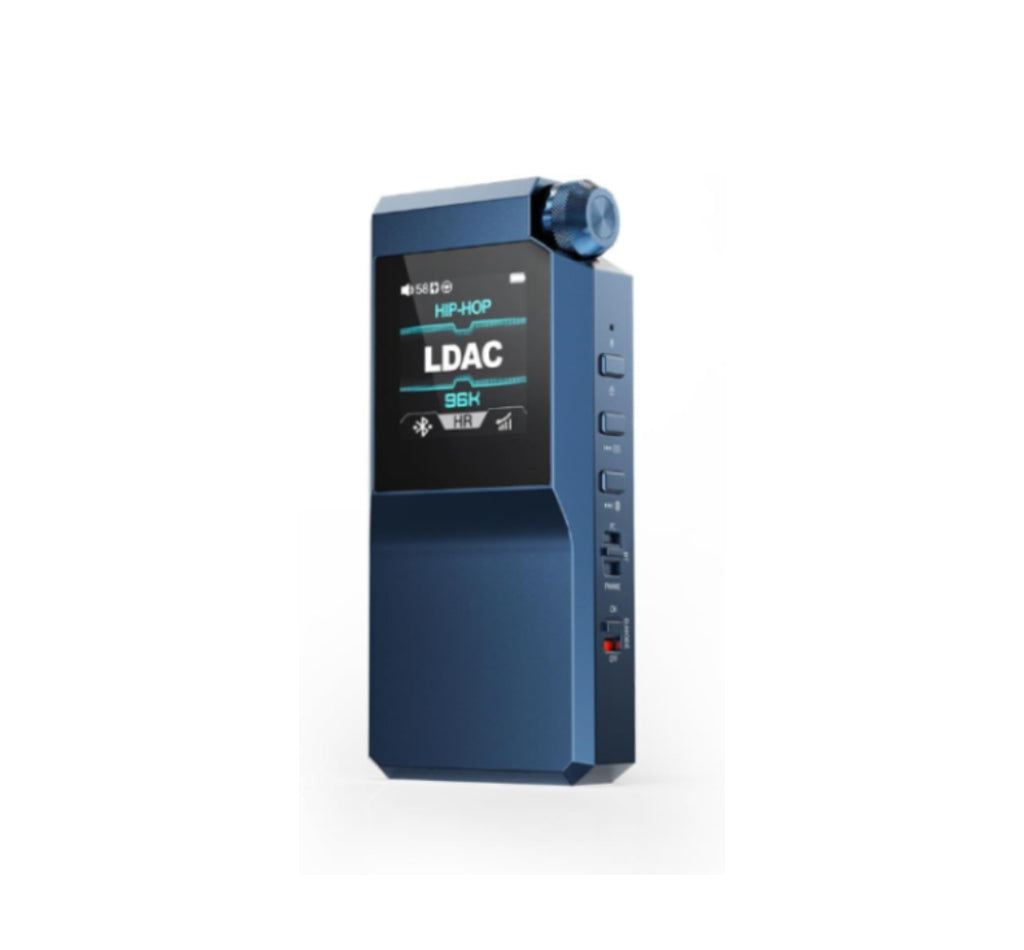

Color: Black/Blue
Inside the Box
1x BTR17
1x Leatherette case
1x Specially-made short dual Type-C OTG data cable
1x Quick start guide
1x Warranty card
1x PET protective film (pre-installed)
