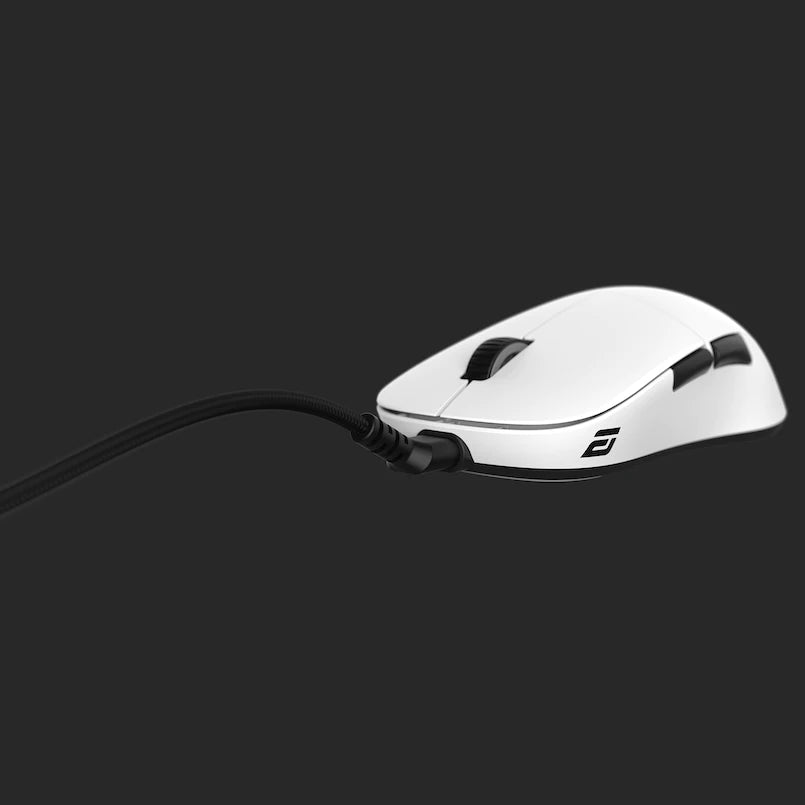

ENDGAME GEAR XM2WE WIRELESS GAMING MOUSE
Latest Kailh GO Optical Switches
The XM2we features Kailh's latest release, the Kailh GO optical switches,
which have been optimized based on our feedback throughout 2022.
Despite being an optical switch, the
Kailh GO switch has a distinct actuation point with the
result of a pleasant,
almost mechanical-like click feeling.
The GO switches have a lifespan of 80 million actuations without
the risk of unwanted double-clicking,
even at fast debounce times.
Stable 1000Hz Wireless
The CompX CX52850 MCU provides stable wireless connectivity at
a 1000Hz polling rate.
Combined with the PixArt PAW3370 sensor running in corded mode,
it guarantees optimal gaming performance.
The XM2we Configuration Software lets you remap all your buttons
and adjust debounce time, polling rate, and sensor settings
(CPI, LoD, etc.).
New Scroll Wheel and Side Buttons
An all-new mouse wheel construction enables a mechanical
micro switch in the form of Kailh's GM2.0 for the middle mouse
button combined
with a (wide) TTC silver scroll wheel encoder.
The new side button construction of the XM2we uses the same
Kailh GM2.0 switches for a crisper click feeling and
vastly improved durability over
the XM1r side button switches.
Improved Internals
The XM2we's design is sleek and durable, with reliable components
and a new large skate design.
It's the same shape as XM1 but with a lower overall weight while using
a 410mAh battery.
The coating is still the same matte UV coating from XM1 and XM1r,
which offers a perfect grip even with sweaty hands.
The XM2we charges by a supplied USB-C cable (180cm) with an angled connector.
Specifications:
Sensor:
PixArt PAW3370
Resolution:
up to 19000 CPI (steps of 50 CPI for 50 to 10000 CPI,
steps of 100 CPI from 10000 to 19000 CPI; pre-defined: 400, 800
(default), 1600, 3200)
Acceleration:
50 G
Lift-Off Distance (LOD):
2mm (1mm via software)
Max Speed:
400 IPS
Microcontroller:
CX52850 (mouse) / CX52650 (dongle)
Polling Rate:
125, 250, 500 and 1000 Hz (1000Hz by default)
Dimensions:
~ 122 x 66 x 38 mm (L x W x H)
Primary Buttons (right/left):
Kailh GO Optical Switches
Lifetime:
80 Million Actuations
Click Detection:
Optical Barrier
Number of Buttons:
5 + 2 (2x top, 2x side, 1x mouse wheel, 1x CPI on bottom,
1x power slider on bottom)
Wheel Encoder:
TTC silver (wide)
Mouse Wheel Scrolling:
2-way
Middle Mouse Button:
pre-sorted Kailh GM 2.0 switches (20 million actuations)
Side Buttons:
pre-sorted Kailh GM 2.0 switches (20 million actuations)
Battery capacity:
410mAh
Battery life:
1 week of gameplay
Materials:
Plastic (Chassis), PTFE (Glides), Dry Grip Coating (Surface)
Skates:
Hybrid Skate Design (large skates pre-installed)
Weight:
~63g (black), white +0.5g
Connection Type:
wireless (2.4 GHz, Dongle: USB 2.0 Type A)
wired (PC: USB 2.0 Type A, Mouse: USB-C)
Cable:
Black Flex Cord 3.0 Type-C
(180cm, USB 2.0 Type A to USB-C)
Color:
Black or White (depending on variant)
