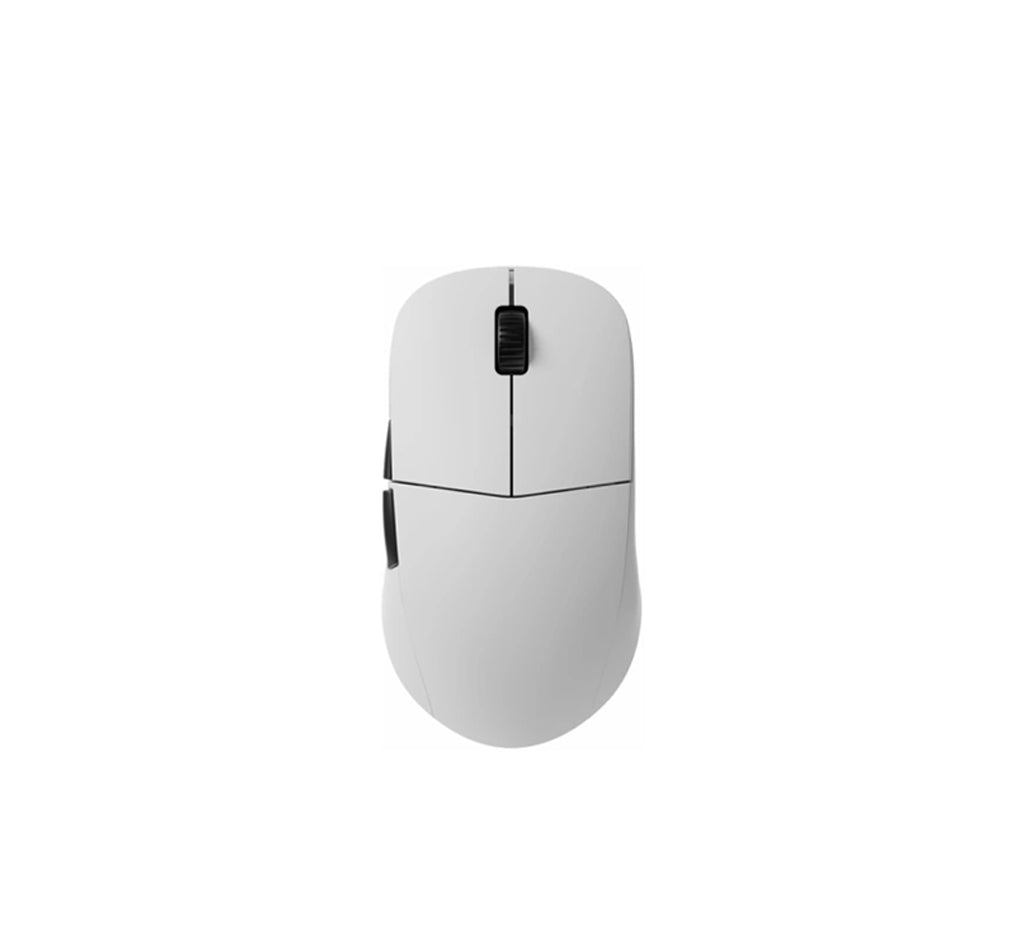

The XM2w 4k Wireless Gaming Mouse is our long awaited high-end wireless
version of the XM series. While maintaining the same ergonomic shape,
we've integrated numerous internal enhancements for reduced weight
and increased consistency. Equipped with the flawless PixArt
PAW3395 sensor, a Nordic MCU, and a high polling rate dongle,
this mouse delivers outstanding performance at up to 4000Hz wireless.
Experience super crisp and satisfying clicks with our custom-made and
pre-sorted Kailh GX SPDT switches. The updated Hybrid skate design
offers two redesigned shapes for customizable glide.
Features
Built for Competitive Play
While the outer shape remained identical to the famous XM claw grip shape,
the inside was re-designed to achieve a lower overall weight of ~62g
while maintining a robust shell design without holes. The XM2w 4k has
been developed by esports veterans for use in competitive play, with
top-of-the-line components including PixArt's PAW3395 sensor, the
Nordic nRF52840 wireless MCU, and Endgame Gear's exclusive
Kailh GX SPDT switches with GX Mode compatibility.
Wireless Polling Rate of up to 4000Hz
To achieve the best performance possible, XM2w 4k is powered by the
Nordic nRF52840 wireless MCU. The 4k dongle utilizes a Nordic nRF52820
to guarantee stable and reliable wireless data transmissions. Additionally,
a Nuvoton M483 MCU is used for the high-speed USB connection,
enabling high wireless polling rates of up to 4000Hz for incredibly low
sensor and click latency. The 4k dongle is included with the mouse for
ideal performance straight out of the box.
Industry-Leading Click Latency
Our XM2w 4k sets a new standard for wireless performance with click
latency measuring an average below 310 microseconds*. With a
constant 4000 Hz polling rate for the clicks, you’ll experience ultra-low
click latency, no matter which sensor polling rate you choose.
This exceptional responsiveness ensures your every click is registered
instantly, giving you a competitive edge and winning you the deciding duels.
*10.000 clicks on XLAT v.1.4.0
PixArt 3395 Sensor
The XM2w 4k's responsiveness significantly improves by implementing
the PixArt PAW3395 featuring a higher resolution pixel array and up to
26000 CPI, Lift-Off-Distance as low as 1mm, and up to 650 IPS for best
accuracy during the fastest of swipes. The PAW3395 also offers sensor-level
MotionSync for consistent and synced reports. With all smoothing and
angle-snapping disabled, the tracking data from the sensor is as raw as
it can be. Power-saving features are completely disabled (corded mode)
squeezing every last bit of performance out of the XM2w 4k.
Kailh GX Switches developed by Endgame Gear
Designed for lightning-fast precision at all polling rates, the mechanical
Kailh GX switches guarantee you won't miss a crucial click. Their SPDT
configuration ensures optimal electrical contact and unmatched reliability.
Featuring both top and bottom contacts, Kailh GX Switches excel whether
you prefer low click latency in GX Speed Mode or security in GX Safe Mode.
What sets them apart is their crisp, defined click sensation, offering
tactile feedback for enhanced gaming control. Precise actuation and a
balanced design ensure flawless, spam-friendly rapid-fire actions.
Hybrid Skate Design
The XM2w 4k comes with two sets of PTFE skates (large & small) and a
sensor skate. Thanks to a hybrid design bottom shell, it's possible to easily
install either large or small skates with the smaller skates fitted by default.
The larger area offers added flexibility when customizing the XM2w 4k's
glide and re-using already purchased skates. The sensor skate is optional
but recommended on softer surfaces.
(Almost) No Power-Saving
Engineered for peak performance the moment you plug it in, XM2w 4k
ensures every click and movement is delivered with precision and speed.
While the focus is on performance, we’ve also integrated customizable
power settings for those who want to extend their battery life. Fine-tune
your experience with adjustable sensor power-saving options and
customizable deep sleep timers, giving you more control without
sacrificing performance.
Specifications
Mouse Specifications
Skates: Hybrid Skate Design
Skates note: small skates pre-installed, large skates included
Microcontroller: Nordic nRF52840
Colour
Primary Colour: Black, White, Dark Frost
Compliance
Compliance Documents: Endgame Gear XM2w 4k Compliance and Safety
Manufacturer Information: Pro Gamersware GmbH Gaußstraße 1, 10589 Berlin, Germany
info@gamersware.com
Responsible Person: Pro Gamersware GmbH Gaußstraße 1, 10589 Berlin, Germany
info@gamersware.com
Product Series
Product Series/Family XM2w
Standards / Specifications
Polling Rate: 4000 Hz, 2000 Hz, 1000 Hz
Polling Rate note: 4000Hz by default
Ergonomics
Mouse layout: right-handed
Supported Grip Types: Claw Grip, Palm Grip, Finger Tip Grip
Sensor
Sensor Type: optical
Sensor Model: Pixart PAW 3395
DPI adjustable: Yes
Min. DPI: 50 DPI
Max. DPI: 26000 DPI
DPI note: steps of 50 CPI; pre-defined: 400, 800 (default), 1600, 3200
Lift Off Distance (LoT): 1 mm
Lift off distance note: 2 mm via software
Acceleration: 50 G
Max. Tracking Speed: 650 IPS
Battery
Battery Capacity: 335 mAh
Max. Battery Lifetime: 7 d
Dimensions
Length / Depth: 122 mm
Width: 66 mm
Height: 38 mm
Weight: 62 g
Connectivity
Wired / Wireless: Wired, Wireless
Connection Type: USB Typ A, 2.4 Ghz Wireless
Connection type note: wireless (2.4 GHz, Dongle: USB 2.0 Type A)
wired USB Type-A (PC), USB Type-C (Mouse & Dongle)
Cable: Black Flex Cord 4.0 Type-C (180cm, USB 2.0 Type A to USB-C)
Cable Length: 180 cm
Lighting
Lighting: No
Materials
Materials Chassis: Plastic
Materials Surface: Dry Grip Coating
Materials Skates: PTFE
Keys
Number of Buttons / Keys: 7
Number of Buttons / Keys Note: 5+2 (2x top, 2x side, 1x mouse wheel, 1x CPI on bottom, 1x ON/OFF Switch)
Primary Mouse Button Switches (right / left): pre-sorted Kailh GX switches
Switch lifetime: 80 million actuations
Click Detection: Digital
Wheel Encoder: TTC silver (wide)
Mouse Wheel Scrolling: 2-way
Middle Mouse Button Switch: Kailh GM 2.0 switches, pre-sorted (20 million actuations)
Side Button Switchtes: Kailh GM 2.0 switches, pre-sorted (20 million actuations)
