Schiit Audio Buf Coherence™ Tube Buffer

Buf
Coherence™ Tube Buffer

Bored with sterile sound? Add rich tube flavor with Buf!
Music Beyond Numbers
Yeah you got lots of zeros. But are you enjoying your music? Buf makes it easy to add tube sound to virtually any system. Go ahead and try it for yourself!

Affordable But Serious

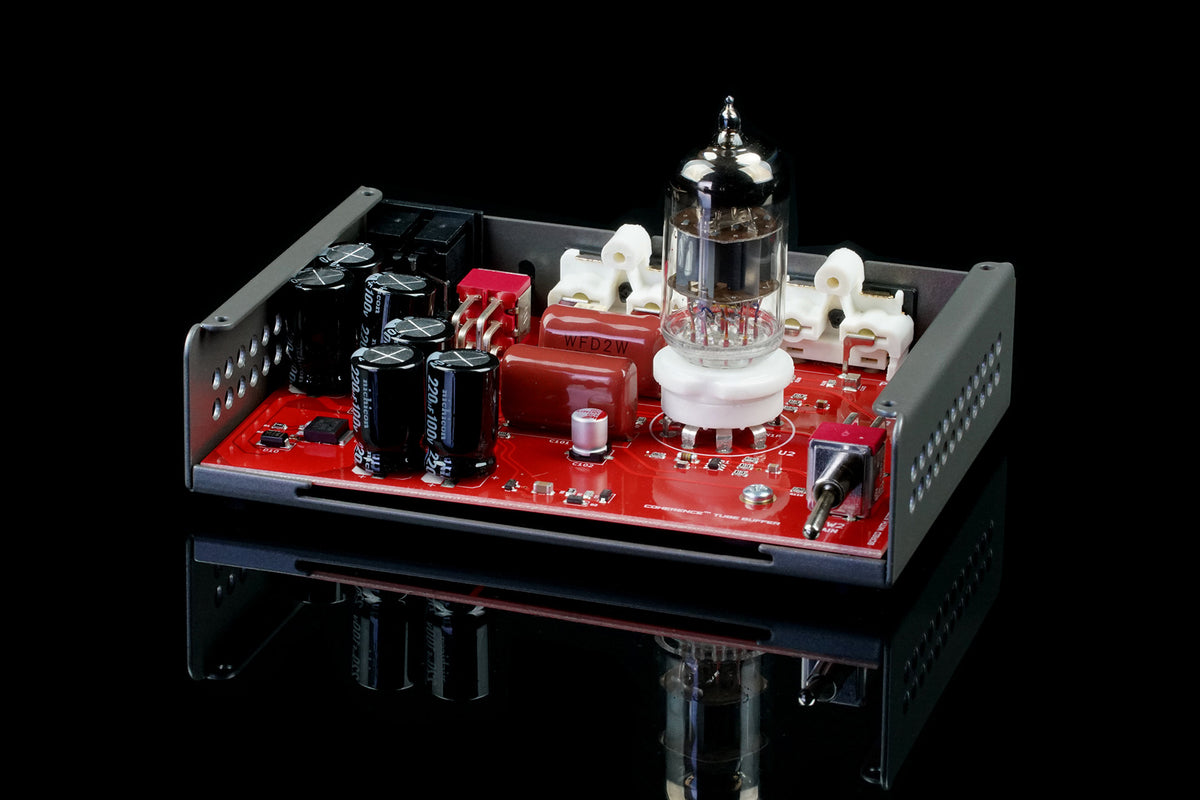

Buf’s low price hides real tube cred. Buf is serious, with a unique Coherence™ output stage, 100V on the tube plate, Panasonic film capacitors, and a 100% linear power supply. No op-amps or switching power supplies here!

Unique Flexibility
A tube buffer with gain? Yes. Coherence maintains absolute phase, and offers gain if you need it. That makes Buf more flexible than other tube buffers. And, it’s easily switched out of the system…just turn it off!

Roll Away

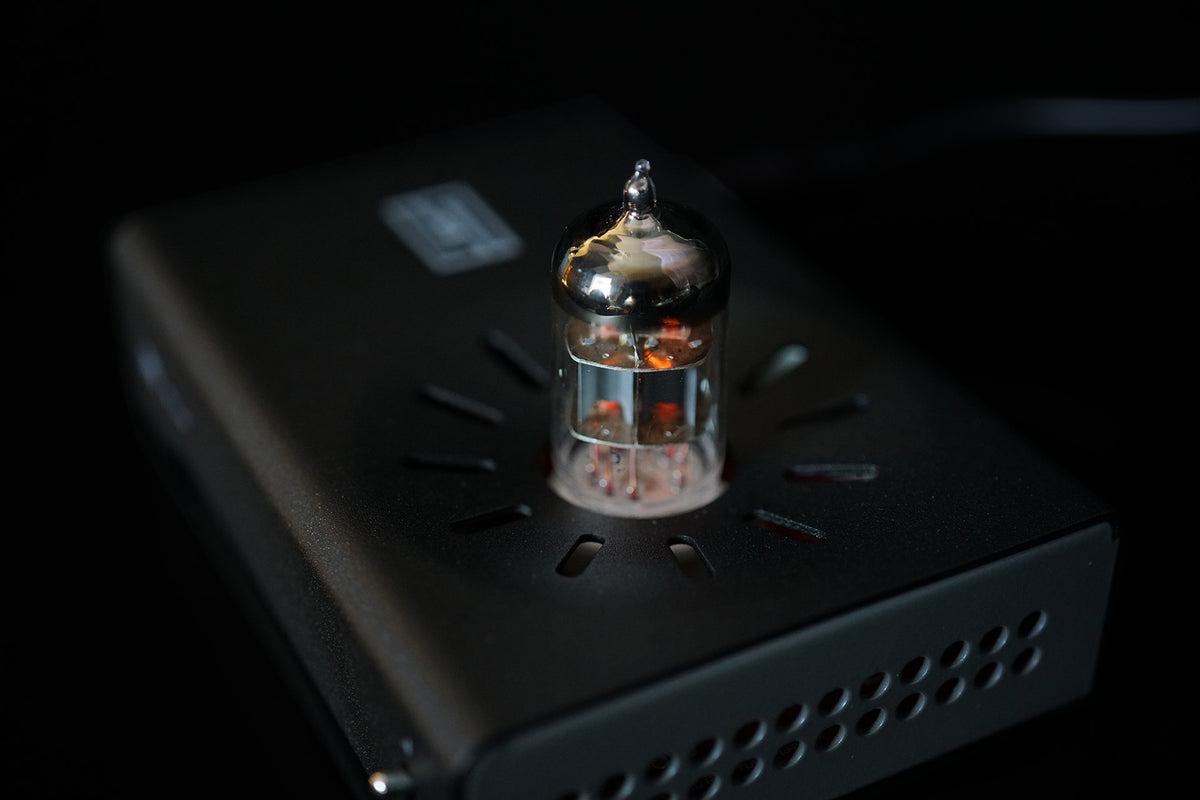

Buf ships with an NOS 6N1P tube. But if you want to roll, you have options, including 6922, ECC88, and 6DJ8.

Designed and Built in the USA. For Real.
By “designed and built in the USA," we mean it. We even do our own PC board assembly on a state-of-the-art robotic assembly line in Corpus Christi.

Specs:
Low Gain (0dB)
Frequency Response: 20Hz-20Khz, +/-1dB
THD: <0.5%, 20Hz-20KHz, at 1V RMS
IMD: <0. 6%, CCIR
SNR: >106db, A-weighted, referenced to 1V RMS
Crosstalk: -90dB, 20Hz-20KHz
High Gain (12dB)

Frequency Response: 20Hz-20Khz, +/-1dB
THD: <0.2%, 20Hz-20KHz, at 1V RMS
IMD: <0.4%, CCIR
SNR: >97db, A-weighted, referenced to 1V RMS
Crosstalk: -80dB, 20Hz-20KHz
Output Impedance: 75 ohms
Input Impedance: 470k ohms
Maximum output: 8.2V RMS
Topology: Coherence™: tube voltage gain with convolved BJT inverter, run in Class A
Protection: delayed start and fast shut-down with muting relay
Power Supply: wall wart with 24VAC and 6VAC outputs, linear regulated HV and LV rails for tube and bipolar components, 6V AC heater
Power Consumption: 6W
Size: 5 x 3.5 x 2.75”
Weight: 1 lb
